Immensely supported in the road and railway design industry.

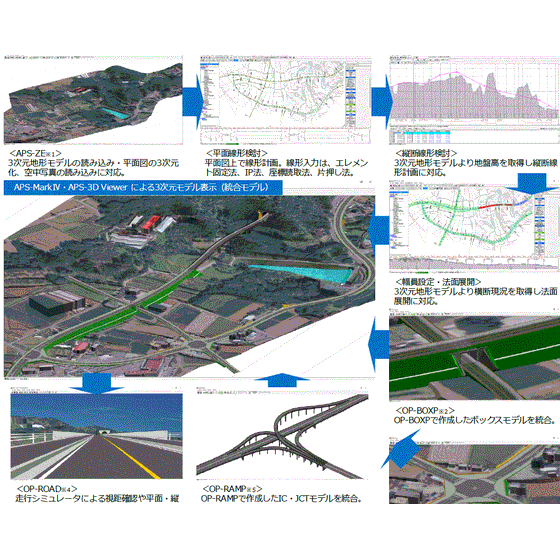

By simply indicating the centerline of the road on a 3D terrain model, the current vertical and horizontal cross-sections can be automatically obtained, and the specified slope can be instantly developed, thereby eliminating the labor of the earthwork process and allowing for efficient alignment studies. Furthermore, all aspects including widening, single slope, vertical and horizontal cross-sections, and slope development are updated in response to changes in alignment, enabling a significant reduction in work time. Additionally, it is possible to automatically create a 3D model of the planned route, and by loading a 3D terrain model (TIN) created with APS-ZE, the 3D model of the route can be overlaid on the 3D terrain model.
Inquire About This Product
basic information
A system specialized in linear calculations and 3D model output, also supporting various coordinate calculations and drawing outputs. <Features> ○ Compatible with BIM/CIM and i-Construction ○ Supports 3D model output integrating intersections, interchanges (IC/JCT), and box culverts ○ Accommodates transition curves for road and railway alignments (clothoid, cubic parabola, sine decay curve) ○ Achieves high degrees of freedom in linear examination and high accuracy in reproducibility through the element fixed method ○ Verifies compliance with road structure regulations in conjunction with linear examination ○ Supports various coordinate calculations and the creation of various drawings ● For more details, please contact us or refer to the catalog.
Price range
Delivery Time
Applications/Examples of results
Please feel free to contact us.
catalog（7）
Download All Catalogs
Company information
MTC was established in 1984 as a software production and sales company, and since then, we have provided numerous package software (APS-21 series) primarily focused on civil engineering design in the construction industry, accumulating experience and achievements. The construction industry is undergoing a significant transformation. On construction sites, we are embarking on "i-Construction," which utilizes ICT throughout all processes from surveying/designing to construction and maintenance management to enhance productivity. We feel that our expected role in the fields of BIM (Building Information Modeling) and CIM (Construction Information Modeling/Management), which aim to improve the efficiency and quality of design work using 3D models, is substantial. As a result, we have a track record of implementation with 4,000 companies, including construction consultants, surveying and design firms, construction companies, the Ministry of Land, Infrastructure, Transport and Tourism, local governments, universities, transportation companies, and administrative scriveners. Moving forward, we will continue to strive to be a company that can provide high-quality software centered around the APS-21 series, aiming to create value that contributes to building a prosperous society.
