Automatic measurement in just 1 minute! Ideal for quality control and anyone can measure immediately!

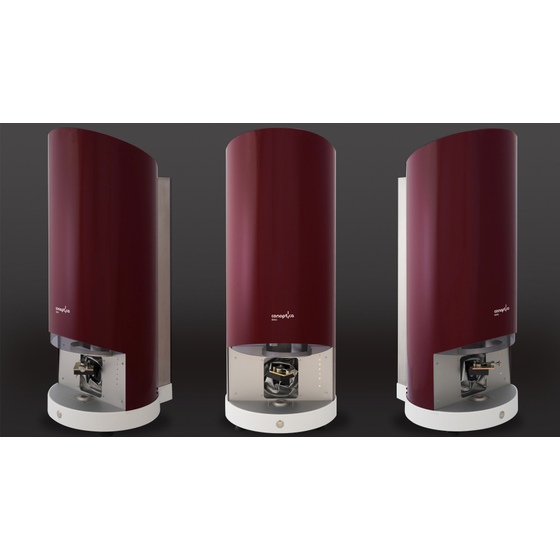

The Konopuchika company's wire drawing die shape measuring instrument is the world standard measuring device for wire drawing die measurement. I would like to share with you the reasons why it is considered the world standard and the benefits of its introduction. - Improvement in drawing speed and reduction in wire breakage - Enhancement of wire quality - Increase in die lifespan - Improvement in die quality - Reduction in internal information exchange time etc. Automatic measurement inside the wire drawing die solves various challenges. *There are models capable of measuring the asymmetry of die bearings. We have a real machine available for demonstrations.
Inquire About This Product
basic information
【Features】 ◇ Composed by combining multiple software systems ◇ Capable of measuring drawing dies, special-shaped dies, special-shaped wires, enamel dies, plugs, and pin & needle ◇ Drawing dies can be equipped with a die automatic supply system, enabling automatic measurement and sorting of dies ◇ Measurable hole diameter sizes: 0.020mm - 7.0mm 0.800mm - 54.00mm ◇ The CU11 series allows observation of the asymmetry of die bearings ● For other functions and details, please feel free to contact us. <<Product Lineup>> ■ CU4 ■ CU6 ■ CU10 ■ CU11 ■ CU11X ■ CU11S (High-speed measurement) ■ CU20 *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
※Delivery times may vary depending on the model, so please feel free to contact us.
Applications/Examples of results
We have a sales record of over 100 units. We are appreciated by manufacturers both domestically and internationally for inspection purposes and more. We also have numerous sales achievements with customers primarily engaged in die and parts processing, not just wire drawing manufacturers! *For more details, please refer to the PDF document or feel free to contact us.
Line up（4）
| Model number | overview |
|---|---|
| CU4 | Stretch Line Die System (Diameter Measurement Only) Measurement Range 2D 0.02 to 8.0mm *Based on module combinations Plug, Pin & Needle System |
| CU6 | Stretch Line Die System (for diameter measurement only) Measurement range 3D 0.02 to 7.0mm *Based on module combinations Plug, pin & needle system |
| CU11 (CU11X, CU11S high-speed measurement model) | Stretch Line Die System (for diameter measurement only) Measurement range 3D 0.02 to 7.0mm *Based on module combinations Irregular Die System Enamel Die System Plug, Pin & Needle System |
| CU20 | Stretch Line Die System (diameter measurement only) Measurement range 3D 0.8 to 54.0mm *Based on module combinations Irregular Die System Enamel Die System Plug, Pin & Needle System |
