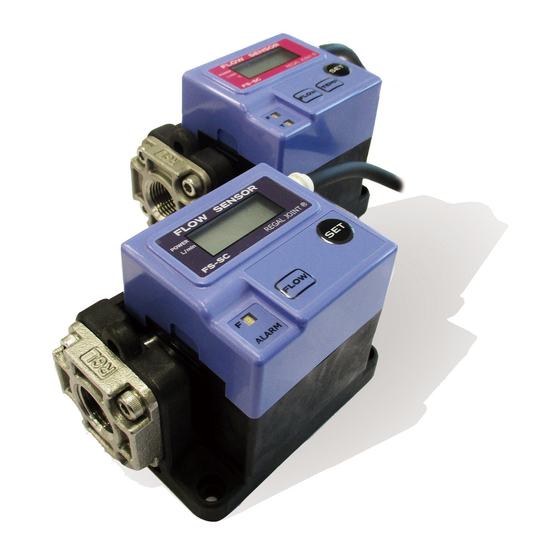

Successor to the FS-S and FS-C series — a highly reliable flow sensor with proven performance and enhanced resistance to clogging and related troubles.
【Do you have any of these challenges?】 ・Difficulty confirming whether fluid is flowing properly ・Need flow monitoring without investing in expensive flowmeters ・Limited installation space inside compact equipment → Paddle wheel flowmeters provide a simple and effective solution! 【Key Features】 ・Visually confirms flow conditions through paddle wheel rotation ・Simple structure for low cost and space-saving installation ・Compatible with a wide range of fluids including water and chemicals << For more details, please download the catalog. >> Contact form: https://rgl.co.jp/contact/
Inquire About This Product
basic information
【Specifications】 ・Models: FS-3SC / FS-10SC / FS-30SC ・Flow Range: 0.5–30 L/min ・Applicable Fluids: Industrial water / Water ・Max. Operating Pressure: 1.0 MPa ・Fluid Temperature: 0–60°C ・Connection Size: Rc3/8 or Rc1/2 ・Accuracy: ±2.5% F.S. ・Output: DC0–10V / 4–20mA ・Power Supply: DC12V or DC24V ・Wetted Materials: POM / SUS ・Seal Material: Fluoroelastomer For detailed specifications, please refer to the catalog.
Price information
<< Feel free to contact us. >> Contact form: https://rgl.co.jp/contact/
Price range
Delivery Time
P4
Applications/Examples of results
【Applications】 Used in cooling water systems for: ・Semiconductor manufacturing equipment ・FPD (Flat Panel Display) manufacturing equipment ・Machine tools and other industrial equipment Case Study: https://rgl.co.jp/instances/introduction-example-01/
catalog（1）
Download All Catalogs
Company information
Since its establishment in 1974, Regal Joint has been engaged in the development of numerous original products and the provision of technology, guided by the motto of "Technology, Service, and Development." In particular, our technical expertise in the design and manufacturing of various devices and fittings in the fluid equipment sector, primarily focused on semiconductor manufacturing, as well as the development and manufacturing of vacuum equipment, is utilized across all cutting-edge fields, including chemistry, machinery, electricity, electronics, construction, and information processing. Additionally, based on the technology we have cultivated so far, we have launched a new business for the development and manufacturing of deodorization, sterilization, and water purification devices using ozone. As a company certified with the international standards ISO 9001 and ISO 14001, we will continue to promote the provision of high-quality, high-performance products and services that consider the environment.
