Achieving high quality at low prices! We propose products with cost advantages!

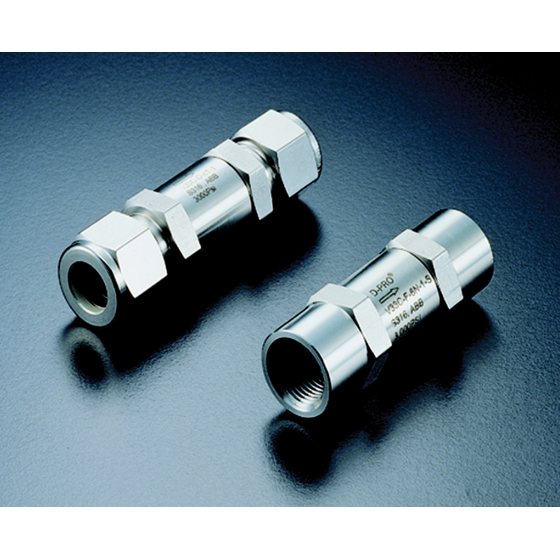

The V33 series check valves manufactured by DK-Lok come in five types! - V33 Series Poppet Check Valve - VP33 Series One-Piece Check Valve - VA33 Series Adjustable Check Valve (C/P adjustable) - VH36 Series High-Pressure Check Valve (maximum operating pressure 41.1MPa) - VCH36 Series CNG Check Valve Currently, if you are using products from other manufacturers, please let us know your application or the part number of the other product, and we will suggest equivalent products! Please feel free to contact us. *The section titled 'Reason for Interest' displayed during PDF download is generated by AI from Ipros Inc.
Inquire About This Product
basic information
【Specifications】 - Maximum operating pressure: 20.6MPa, 41.1MPa - Operating temperature range: -28℃ to +208℃ (for FKM O-rings) *Refer to the catalog for the temperature range of other O-ring materials. - Cracking pressure: 0.002 to 0.689MPa - Connection size: 1/8" to 1" - Connection type: Double ferrule fittings, ISO taper threads, NPT threads ● For more details, please download the catalog or contact us.
Price information
For more details, please contact us.
Delivery Time
Applications/Examples of results
Purpose: Prevention of gas backflow Examples of achievements: Gas supply equipment, gas control systems (such as gas boxes)
catalog（10）
Download All Catalogs
Company information
We, Value Impact Co., Ltd., were established with the business purpose of providing products and services that have an impact on value, thereby enhancing our customers' competitiveness, promoting business growth, and expanding market share. One of these products and services includes fluid control equipment and piping components sourced from overseas manufacturers. Each company excels in cost performance while achieving the high-level quality demanded by our customers. As a sales company in Japan, we promise to propose products that fit our customers' needs and provide comprehensive customer support. Furthermore, we will continue to discover, evaluate, and supply valuable products from around the world, striving to achieve our business objectives. In 2017, we established the Yokohama Technical Center in Yokohama City. At this center, we conduct experiments (such as operation and functionality checks) and assembly work for our imported products. Aiming for further service improvement, we also handle the design and production of gas piping, valve boxes, cylinder cabinets, and more at this center. *The section titled "What sparked your interest" displayed during the PDF download is generated by Ipros Co., Ltd.'s AI.
