An infrared emitting diode is used on the emitting side, and a high-sensitivity phototransistor is used on the receiving side.

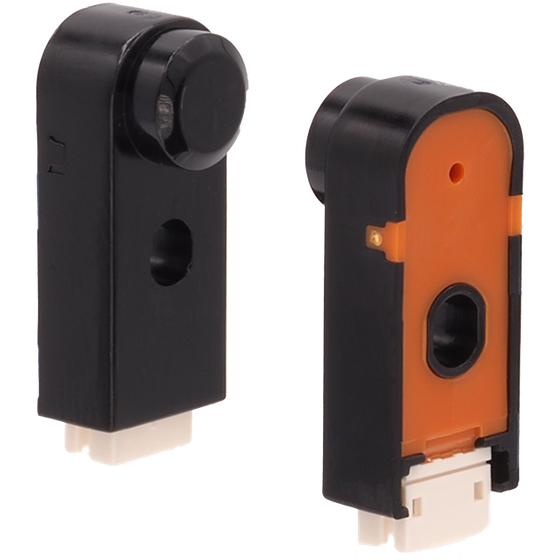

The KB3830 is a completely dust-proof type of separated photo sensor that employs an infrared emitting diode on the emitting side and a high-sensitivity phototransistor on the receiving side. It can also be used as standalone units for the emitting and receiving sides. The gap between the emitting and receiving sides can be set arbitrarily (1 to 100 mm). It is dust-proof and features a dust prevention structure (resin-sealed type) for the inside of the lens. It is a low-cost type suitable for detecting objects passing through financial equipment, among other applications. For more details, please contact us or refer to the catalog.
Inquire About This Product
basic information
【Features】 ○ Separated type photo sensor with complete dust-proof design ○ Infrared emitting diode on the emitting side ○ High-sensitivity phototransistor on the receiving side ○ Can be used as separate units for emitting and receiving ○ Gap between emitting and receiving can be set arbitrarily (1 to 100 mm) ○ Dust-proof type with a dust prevention structure inside the lens (resin-sealed type) ○ Low-cost type ● For more details, please contact us or refer to the catalog.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
【Applications】 ○ Object passage detection for financial devices ○ Object passage detection for vending machines and ticket machines ○ Detection of paper presence and timing in copiers and printers ○ Object passage detection for various automatic machines ● For more details, please contact us or refer to the catalog.
catalog（1）
Download All Catalogs
Company information
As a specialized manufacturer of optical semiconductor components with over 50 years of experience, we are exploring niche markets suitable for our company by leveraging unique and advanced technological information gathered from around the world. In addition to various electronic devices, optical equipment, office machines, and financial terminals, we are expanding our sales into the biotechnology field, targeting future markets such as medical plant cultivation and photosynthesis. We are enhancing our production facilities and workforce to enable a wide range of product manufacturing, primarily centered at our Odawara headquarters factory and our Zhuhai factory in China. We are also engaged in sales activities as an authorized distributor for Nichia Corporation and Germany's FAULHABER.
