Flexible and efficient voltage/current output within the rated power

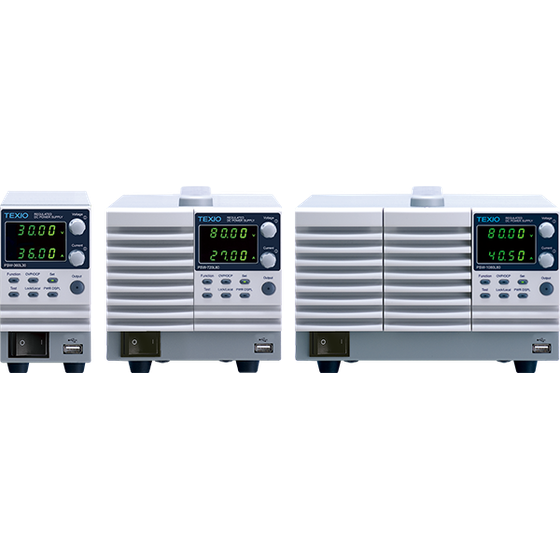

The PSW-A series is a switching-type DC regulated power supply capable of a wide range of voltage and current output within the maximum rated power. Three output capacity types (360W, 720W, and 1080W) and five maximum voltage types (30V, 80V, 160V, 250V, and 800V) are available, covering a wide range of applications. With USB and LAN ports as standard and rack-mount compatibility, the PSW-A series can also be used as a system power supply. The PSW-A series retains the functionality of the previous PSW series, and comes standard with previously optional features (logging, constant power control, tUVP, fan stop, and fixed setting digits). *The PSW-A series does not have a power switch trip function. For more details, please contact us or download the catalog.
Inquire About This Product
basic information
【Features】 ○ 360W: 1/6 rack, 720W: 1/3 rack, 1080W: 1/2 rack ○ Diverse functions → CV priority / CC priority selection function, variable output slew rate, output delay, breather control, test mode, variable internal resistance mode, remote sensing, etc. ○ Standard equipped with external analog control, USB, and LAN (GP-IB is optional) ○ Series connection of up to 2 units*, parallel connection of up to 3 units is possible (* Series connection is not possible for 250V/800V models) ○ Protection features: Over Voltage Protection (OVP), Over Current Protection (OCP), Over Temperature Protection (OTP) ○ Worldwide compatible power input 100Vac to 240Vac ○ CE marking, RoHS compliant ● For more details, please contact us or download the catalog.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please contact us or download the catalog.
catalog（2）
Download All Catalogs
Company information
Texio Technology is a manufacturer of DC stabilized power supplies and electronic/electrical measuring instruments. Including measuring instruments under the Trio and Kenwood brands, we have over 50 years of history and achievements in our business. Our main products include well-established general-purpose measuring instruments such as DC stabilized power supplies, electronic load devices, oscilloscopes, multimeters, and function generators, as well as custom power supply units tailored to meet individual customer needs. We create valuable power and measuring instruments for the next generation and support our customers from product development to production and repair.
