Measuring from 0.7μL to 5μL is possible! Ideal for measuring samples that yield only a small amount.

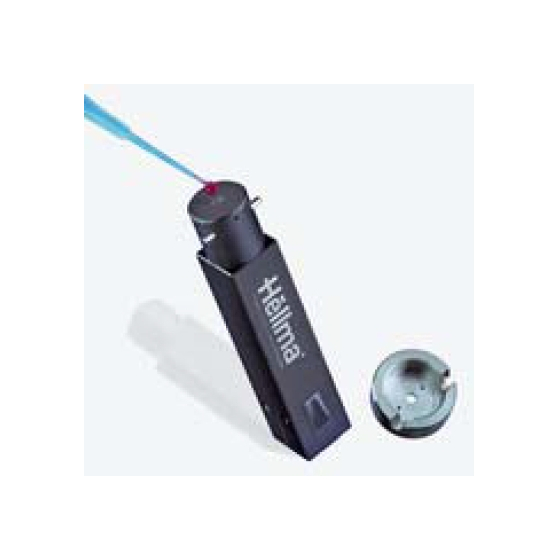

This product is a fiber optic ultra-micro cuvette made by the German company Helma, ideal for measuring samples from which only extremely small amounts of DNA or proteins can be obtained. If the sample is rare and you want to reuse it, it is possible to suction it back after measurement. A cap with an optical path length of 1mm requires a sample volume of 3μl to 5μl, while a cap with a 0.2mm optical path length requires 0.7μl to 4μl of sample. It can be used with all current spectrophotometers that utilize cuvettes, accommodating a wide range of sample concentrations from low to high. 【Features】 - Measurement possible from 0.7μL to 5μL - Reduces errors and time loss during dilution - Samples can be suctioned back and reused after measurement - Compatible with all current spectrophotometers that utilize cuvettes - Caps prevent sample evaporation *For more details, please refer to the catalog or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Catalog Number: 105.800-UVS ■Cell Outer Dimensions (WXD): 12.5 x 12.5 mm ■Cell Outer Height (H) ・68.5 mm (Slit Height 8.5 mm) ・75 mm (Slit Height 15 mm) ・80 mm (Slit Height 20 mm) ■Window Material: Quartz SUPRASIL ■Sample Volume: 0.7–5μl ■Path Length: 0.2mm or 1 mm (+/- 0.02mm) ■Maximum Operating Temperature: 50°C ■Slit Center (Height can be adjusted with the included adapter) ・8.5 mm, 15 mm or 20 mm (Variations may occur depending on the shape of the cell holder and the specifications of the spectrophotometer) *For more details, please refer to the catalog or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
[Purpose] ■Measurement of samples from which only extremely small amounts of DNA or proteins can be obtained, etc. *For more details, please refer to the catalog or feel free to contact us.
