Efficient automation of pallet loading in a space-saving manner.

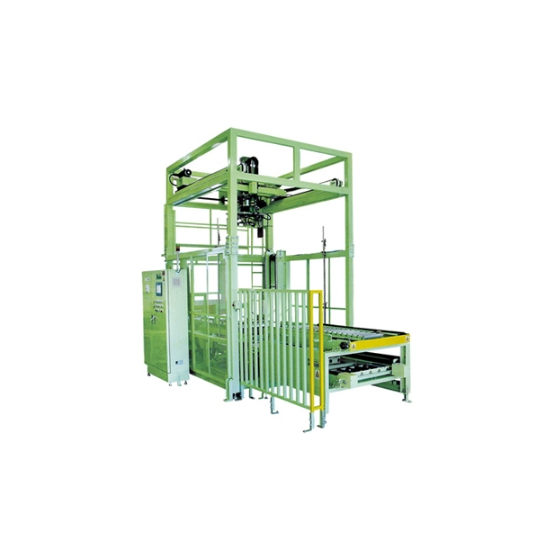

The "PAL-G12" is a system that supplies empty pallets and performs loading and transportation. It efficiently automates the loading onto pallets. It accommodates various packaging styles based on loading patterns. It has a processing capacity of 12 cases per minute and can transport up to 20 kg. 【Features】 ■ Automation of pallet loading ■ Compatibility with various packaging styles ■ Processing capacity of 12 cases per minute ■ Gantry type *For more details, please refer to the catalog or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Model Name: Gantry Type Palletizer ■Model Number: PAL-G12 ■Processing Capacity: MAX 12 cases/min (excluding pallet change) ■Case Size ・L (Length): min 175 – max 500 ・W (Width): min 150 – max 450 ・H (Height): min 100 – max 450 ■Weight of Conveyed Items: Maximum 20kg ■Power Supply: 3-phase 200V 50Hz/60Hz ■Control Circuit: DC24V ■Main Power: 9.0kW ■Air: 0.5MPa 150N liters/min ■Safety Measures ・Automatic stop switch when safety fence door is opened ・Empty pallet stocker *For more details, please refer to the catalog or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the catalog or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Ehime Prefecture, where I live, has been a region with a high production of mandarins since ancient times. As it is said that a cardboard box equals a mandarin box, the demand for cardboard manufacturing and sealing machines has been proportional to mandarin production, and at the same time, there was a demand for their design as well. Focusing on this, we decided to start "Daiwa Design Co., Ltd." on June 1, 1982, which specializes in outsourced design for machinery manufacturing companies. We undertook numerous designs, and revisions of drawings and product tests were repeatedly conducted on the manufacturing company's site. A quarter of a century has passed, and during this time, we were compelled to conclude that the integration of manufacturing and design is essential for perfect drawings and perfect products. Thus, on December 12, 1990, the internal manufacturing division "Daiwa Engineering Co., Ltd." was established to engineer exterior lines for all industries, including food, pharmaceuticals, cosmetics, and electronics.
