Pressure regulators for production lines that can be manufactured as products certified by the Minister of Economy, Trade and Industry for centralized supply of various gases!

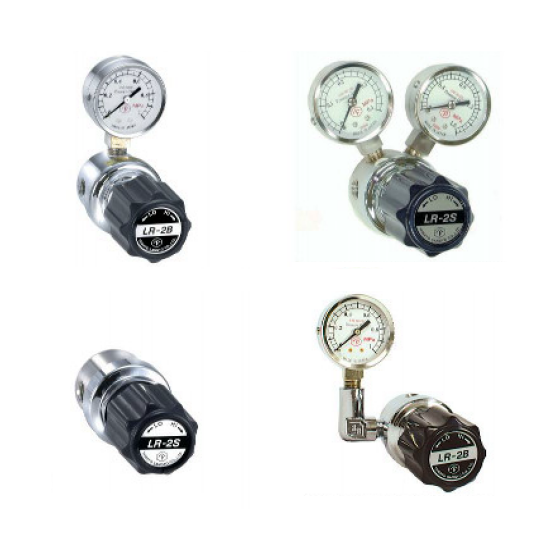

The "LR-2 Series" is a line pressure regulator used for gas supply at the end of piping when supplying various gases centrally. It can be manufactured as a product certified by the Minister of Economy, Trade and Industry. 【Features】 ■ Available in brass and stainless steel types ■ Ideal for gas supply with purity of 99.99% (brass) to 99.999% (stainless steel) ■ Flow direction can be produced with a left-side inlet (left high pressure) type For more details, please refer to the catalog or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Model: LR-2B, LR-2S / LR-2BL, LR-2SL ■Primary Side Pressure (MPa): 0.3–3 / 0.1–0.99 ■Secondary Side Pressure (MPa): 0.05–0.99 / 0.01–0.1 ■Material: C3604B, SUS316 / C3604B, SUS316 ■Weight: 0.8kg / 0.9kg ■Standard Flow Rate (m³/h) ・2B(S): 100 (P1=3MPa, P2=0.99MPa, N2 value) ・2B(S)L: 15 (P1=0.99MPa, P2=0.01MPa, N2 value) ■Maximum Flow Rate (m³/h) ・2B(S): 125 (P1=3MPa, P2=0.99MPa, N2 value) ・2B(S)L: 45 (P1=0.99MPa, P2=0.1MPa, N2 value) *For more details, please refer to the catalog or feel free to contact us.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please refer to the catalog or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Yamato Sangyo Co., Ltd. is a company located in Osaka City, Osaka Prefecture, engaged in the manufacturing and sales of pressure control equipment. The products handled include pressure reducing valves, pressure regulators, gas-related products, general industrial pressure regulators, analytical instrument pressure regulators, gas supply units, gas supply facility plant design and construction, and a wide range of other items. From beer foam to rockets and fuel cells, cutting-edge technology is alive and well in Japan's leading industries.
