An actuator with a swiveling structure that has a flange mounted on a stable base.

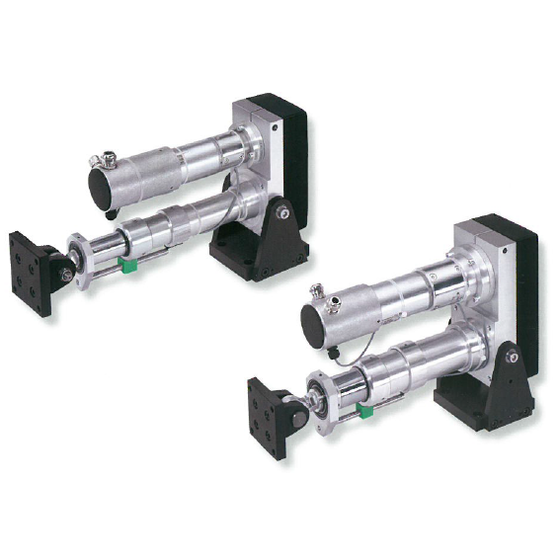

The "AG45/46" is a DC motor with a low backlash planetary gearhead and a ball screw electric actuator. This product is a U version designed for narrow spaces. It features a swivel structure with a flange mounted on a stable base, and it incorporates incremental encoders for speed and position detection. Additionally, it has a reference sensor built in for position correction. *For more details, please refer to the catalog or feel free to contact us.
Inquire About This Product
basic information
【Main Technical Data (AG457)】 ■Rated Voltage: 24V DC ■Rated Voltage Range: 20–30V DC ■Power Consumption (Manual Sensor Position Setting): 3.8A DC ■Power Consumption (Sensor Position Setting by Motor Operation): 5.3A DC ■Maximum Mechanical Rated Guide Movement Distance: ±25/50/75/100mm ■Electrical Rated Guide Movement Distance Limit: ±23/48/73/98mm
Price range
Delivery Time
Applications/Examples of results
Position control applications for unwinding and rewinding trolleys *For more details, please refer to the catalog or feel free to contact us.
Line up（4）
| Model number | overview |
|---|---|
| AG4571 | Stroke: ±25/50/75/100mm Thrust: 1000/2500N Control Speed: 24mm/s, 10mm/s |
| AG4671 | Stroke: ±25/50/75/100/150mm Thrust: 2400/5300N Control Speed: 20mm/s, 7mm/s |
| AG4591 | Base-less version of AG4571 Stroke: ±25/50/75/100mm Thrust: 1000N Control Speed: 24mm/s |
| AG4691 | Base-less version of AG4671 Stroke: ±25/50/75/100mm Thrust: 2400/5300N Control Speed: 20mm/s, 7mm/s |
catalog（1）
