UV irradiation device with nitrogen purge conveyor capable of UV irradiation under a nitrogen atmosphere.
UV irradiation is possible under a nitrogen atmosphere that eliminates oxygen, which is an inhibiting factor for UV curing! A nitrogen purge conveyor that allows for easy adjustment of oxygen concentration.

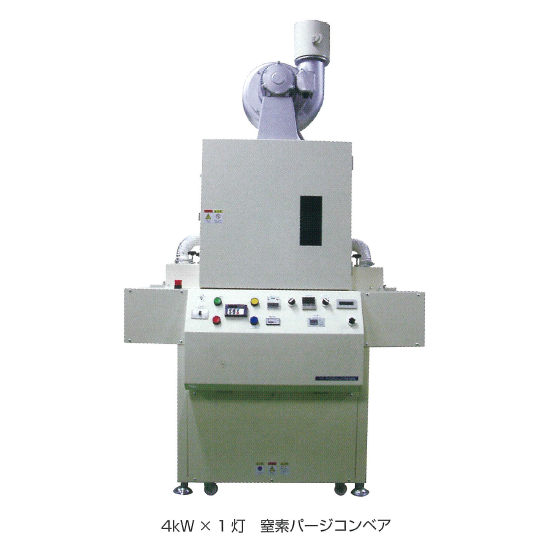

The "Nitrogen Purge Conveyor UV Irradiation Device" is a device equipped with a nitrogen purge transport mechanism for curing UV-curable inks and resins under a nitrogen atmosphere. It enables UV irradiation in a nitrogen atmosphere that eliminates oxygen, which is a factor that inhibits UV curing. 【Features】 ■ Lamp output can be switched between three levels ■ Oxygen concentration can be easily adjusted ■ Unique design of the nitrogen purge box reduces nitrogen usage ■ Additional installation of oxygen concentration meters, leak detectors, and various filters is possible ■ It has the same specifications as production machines, allowing for horizontal expansion *For more details, please refer to the catalog or feel free to contact us.
Inquire About This Product
basic information
■Specifications (Representative Example) Lamp Used: 4kW × 1 lamp * 80/120/160W/cm, three-stage switchable External Dimensions: 820(W) × 1100(D) × 1870(H) mm Weight: Approximately 150 kg Conveyor Speed: 1–10 m/min Irradiation Distance: 150–260 mm (from the belt surface to the center of the lamp) Belt Width: 250 mm Power Supply: 3Φ AC200V 30A 50/60Hz Nitrogen Flow Rate: 60–500 NL/min, connection port Rc1/2 Options: Heat-cut filter, shooter (inlet and outlet side)
Price range
Delivery Time
Applications/Examples of results
【Application】 - Optical film industry, etc. *For more details, please feel free to contact us.
