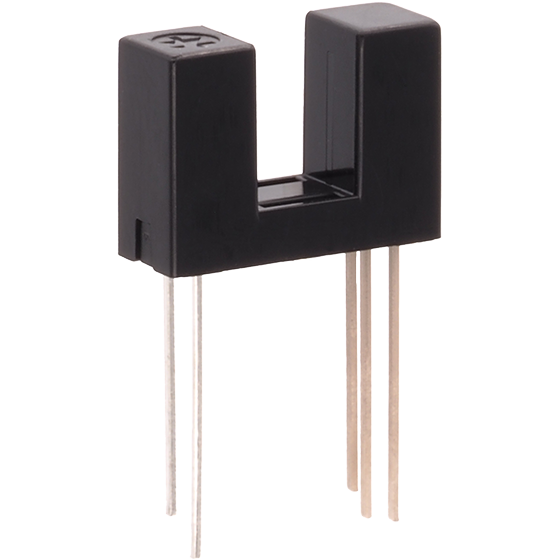

It is a dust-proof type small photo interrupter.
The through-type photo sensor, dust-proof type KI3520 and KI3521, features an infrared light-emitting diode on the emitting side and a photo IC output on the receiving side, with a double structure that includes an outer case cover and an inner detection slit. Its dust-proof design makes it resistant to the effects of dust. The package type is PCB mountable. It can be used for object passage detection in card machines and currency exchangers, as well as coin passage detection in vending machines and amusement devices, and in office automation equipment. For more details, please contact us or refer to the catalog.
Inquire About This Product
basic information
【Features】 ○ Dust-proof structure: Resistant to dust influence ○ High detection accuracy: Built-in slit width of 0.5mm ○ Less susceptible to stray light due to visible light cut type ○ Built-in amplifier, open collector output type ○ Other series Phototransistor type ... KI3524 【Specifications】 ○ Package type: PCB direct mount type ○ Gap: 5mm ○ Depth: 7.5mm ○ Slit: 0.5mm
Price range
Delivery Time
Applications/Examples of results
【Applications】 ○ Object passage detection for card devices and currency exchange machines ○ Coin passage detection for vending machines and amusement devices ○ OA equipment and others For more details, please contact us or refer to the catalog.
