Ultra-precision holding vice [Holds the workpiece perfectly against the reference surface of the vice body!]
Woodworking vise
A super-precision holding vise that can securely hold the workpiece against the reference surface of the vise body! It eliminates the loss of not achieving accuracy after processing!

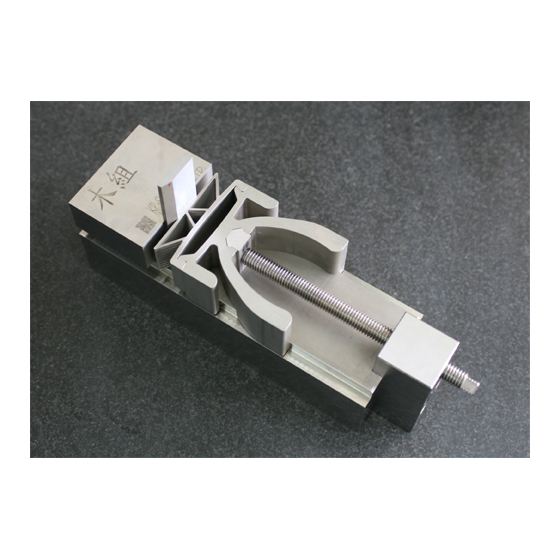

The "Wooden Frame Vice" was developed based on the wooden frame structure of the Horyu-ji temple corridor. The movable jaw is designed as a frame structure, and the beam of the movable jaw adapter is a spring structure that allows for elastic deformation, enabling the workpiece to be held tightly against the reference surface of the vice body (clamped). The wooden frame vice has been adopted by ultra-precision machine tool manufacturers both domestically and internationally. This is primarily because it allows for easy and highly precise clamping due to its high holding accuracy. 【Features】 ■ The workpiece can be held tightly against the reference surface of the vice body. ■ Adopted by ultra-precision machine tool manufacturers both domestically and internationally. *For more details, please request materials or view the PDF data available for download.
Inquire About This Product
basic information
Usage in nano processing and ultra-precision machining. When used with aluminum, plastic, and brittle materials, the deformation and warping of workpiece holding are less compared to general vises. Therefore, for those who have been specializing in plastic processing but want to start machining aluminum in the future, ultra-precise holding can be achieved with simple know-how. This allows for smooth business expansion.
Price information
176,000 yen and up
Delivery Time
P4
Applications/Examples of results
Precision grinding, machining, milling, jig grinding machine, electrical discharge and wire, as precision measurement jigs.
Company information
Based on my experience handling difficult jobs that no one else would take on, I have recently been involved in the manufacturing of ultra-precision components, specifically using ultra-precision holding vices and ultra-fine bubble generators: thermal clamps and the world's smallest assembly blocks.
