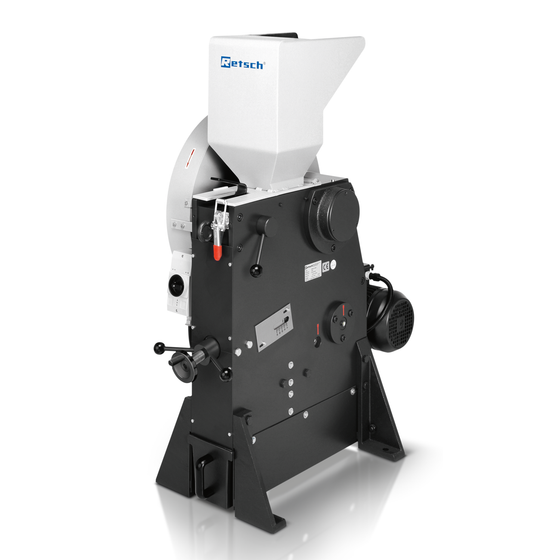

It can quickly coarsely crush materials from medium-hard to hard and from brittle to tough.
We offer various types of jaws, including those designed to prevent heavy metal contamination, making them safe for use in a wide range of environments from laboratories to factory analysis rooms. Advantages: - High processing capacity - Maintains high reproducibility with zero point adjustment function - Gap width can be continuously adjusted - Motor protection switch - Material selection prevents contamination - Hopper with anti-rebound structure - Safety-conscious design with interlock and motor brake - Easy to clean - Continuous grinding capability - Equipped with dust suction module - Specifications available for silicon grinding.
Inquire About This Product
basic information
Application: Coarse crushing, preliminary crushing Field: Chemicals / Plastics, Building materials, Engineering / Electronics, Environment / Recycling, Geology / Metals, Glass / Ceramics Nature of input sample: Medium hard, hard, brittle, tough Crushing method: Pressure Sample input size: < 90 mm Crushing particle size: < 2 mm Material of crushing set: Manganese steel, stainless steel, tungsten carbide, steel (1.1750) (to prevent heavy metal contamination) Crushing jaw width: 90 x 90 mm Gap width adjustment: 0 - 30 mm Gap width display: Scale Zero point adjustment: Yes Open hopper: Yes Dust extraction module: Yes Lubricating oil remote injection kit: - Online model: Sold separately as an accessory Receiver capacity: 5 l Motor: Single-phase motor / Three-phase motor Drive: 1.5 kW Voltage: 100V-240V, 50/60Hz Power supply: Single-phase / Three-phase Protection rating: IP 54 W x H x D (with cover closed): 450 x 1160 x 900 mm Body weight: ~ 300 kg Standard: CE
Price information
-
Delivery Time
Applications/Examples of results
Application examples Glass, quartz, coke, silicon, slag, cement clinker, alloys, construction materials, basalt, stone, coal, refractory clay, granite, oxide ceramics, minerals, ores, feldspar, ceramics, ...
