Visual confirmation of shape! Coarse and irregular particles can be detected with high precision. Both dry and wet methods are acceptable.

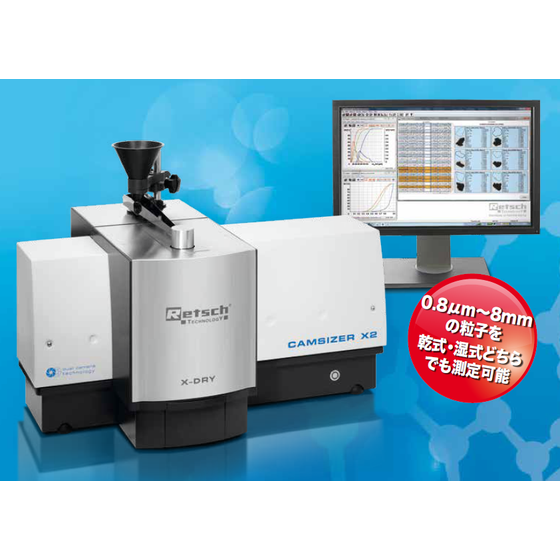

The "CAMSIZER X2" is an image-based particle size distribution measurement device that uses two cameras and dynamic image analysis to measure particles ranging from 0.8μm to 8mm all at once. Depending on the characteristics and agglomeration state of the sample, you can choose from three dispersion methods: free fall dispersion (dry), compressed air dispersion (dry), and solvent dispersion (wet). With a photo capture rate of 300 frames per second and automatic analysis by software, it is possible to read information on hundreds of thousands to millions of particles in just 1 to 3 minutes. This provides highly reliable and reproducible particle size distribution and particle shape distribution. *We also handle "Material Structure Analysis Device ATM" and "Hardness Testing Device Qness." 【Features】 ■ Ultra-high resolution (0.8μm/pixel) ■ Measure particles from 0.8μm to 8mm without hardware adjustments such as lens changes ■ Measure particles with a wide range of particle size distributions all at once ■ In the compressed air dispersion method, the concentration of the sample can also be evaluated *For more details, please refer to the documentation. Application examples and analysis cases are also introduced.
Inquire About This Product
basic information
【Other Features】 ◎ High-precision detection of trace amounts (<0.1%) and non-standard coarse or fine particles ◎ 4.2 megapixel resolution per camera due to innovative optical system design ◎ Dynamic image analysis method using two cameras simultaneously (internationally patented technology / compliant with ISO13322-2) ◎ Switch between dry and wet modes in under one minute 【Application Examples】 - Powders, granules, and pellets of pharmaceutical products - Ground or granular food products - Raw powder for detergent and chemical products - Plastic powders (no issues with static electricity on the surface) - Metal powders for additive manufacturing (AM, 3D printing applications), MIM, solder powders, etc. - Abrasives - Fine sand and construction materials - Various fibers (glass, PET, carbon, wood, etc.) *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the materials or feel free to contact us.
Company information
Varda Scientific covers a wide range of products, from sample grinding, crushing, homogenization, and heat treatment for laboratory use, to particle size measurement, component analysis, cutting, polishing, embedding, and hardness testing. Varda Scientific has five brands: Leco, QATM, Carbolite Gero, Eltra, and MRB. Since 1999, we have been operating as Leco Corporation, handling products from Leco and Leco Technology. On January 1, 2014, we began handling Carbolite Gero, and at the same time, in line with the increase in the number of brands we handle, we changed our company name to Varda Scientific Corporation. In 2018, we started handling ATM and Qness, and in June 2019, MICROTRAC and Microtrac Bell joined the Varda Scientific Group. As of May 1, 2020, ATM and Qness merged to become QATM, further enhancing our capabilities and allowing us to better meet our customers' needs.
