The sensor unit is compact and has high waterproof performance, allowing it to be installed even in small-diameter observation wells!

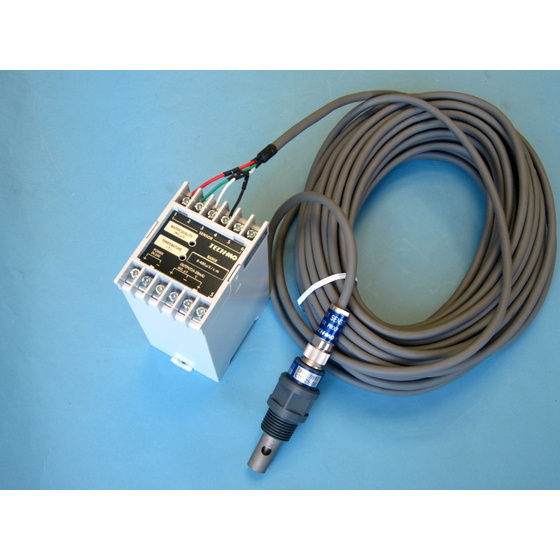

This product is an electric conductivity meter (conductivity meter) with a separated sensor unit and conversion unit. The sensor unit comes in two types: a low conductivity type with a maximum of 400μS/cm and a high conductivity type with a maximum of 10,000μS/cm. The measurement range can also be switched, making it applicable to a wide range of conductivity. In addition to conductivity, it also has a built-in water temperature sensor, providing a 4-20mA output for water temperature. 【Features】 ■ Separated sensor unit and conversion unit ■ The sensor unit is compact and has high waterproof performance, allowing installation in small-diameter observation wells ■ Easy to clean, making it suitable for measurements in outdoor waterways and other environments where weather resistance is required ■ The sensor unit comes in two types: a low conductivity type with a maximum of 400μS/cm and a high conductivity type with a maximum of 10,000μS/cm, and the measurement range can be switched, making it applicable to a wide range of conductivity ■ In addition to conductivity, it also has a built-in water temperature sensor, providing a 4-20mA output for water temperature *For more details, please refer to the related links or feel free to contact us.
Inquire About This Product
basic information
【Other Features】 - The standard cable length for the sensor unit is 5m. - The S400 type sensor for low conductivity can be custom-made with a maximum length of 50m, specified in 5m increments. - The S1000 type sensor for low conductivity has a fixed cable length of 5m. - The above-ground extension can also be up to 5m, and the total cable length must be within 10m. *For more details, please refer to the related links or feel free to contact us.
Price range
P3
Delivery Time
Applications/Examples of results
【Usage】 ■ For rivers and groundwater *For more details, please refer to the related links or feel free to contact us.
