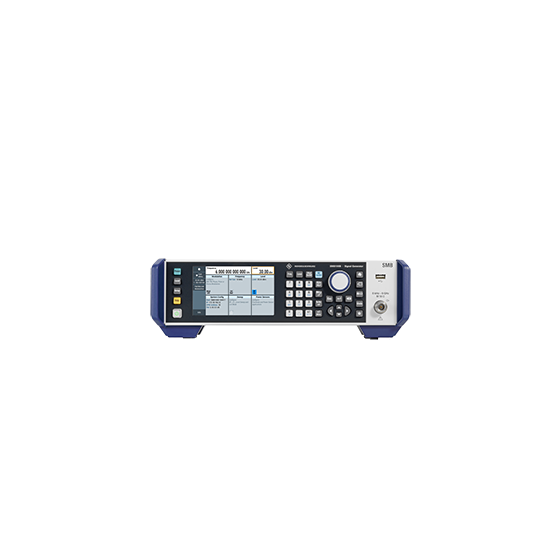

RF signal generator "R&S SMB100B"

An ideal combination of performance and usability in a compact size. A signal generator that combines signal quality, output power, and ease of use!

The new R&S SMB100B RF signal generator features uncompromising performance and versatility in a space-saving chassis. In addition to excellent signal purity and high output power, the R&S SMB100B is characterized by a wealth of features and extremely simple operation. It can be used in various applications in research and development, manufacturing, service, and maintenance, making it particularly suitable for applications where cost performance is emphasized. 【Features】 ■ Frequency range of 8 kHz to 1 GHz, 3 GHz, or 6 GHz ■ Excellent SSB phase noise: -134 dBc (measured value) (1 GHz, offset 20 kHz) ■ Extremely low wideband noise: -153 dBc (typical value) (15 MHz < f ≤ 6 GHz, offset 30 MHz) ■ Ultra-high output power: 34 dBm (measured value) (1 GHz) ■ Compact design: 2 HU, ¾ 19-inch width ■ State-of-the-art large 5-inch touchscreen GUI *For more details, please refer to the PDF document or feel free to contact us.
