Equipped with a servo motor, standard feature of programmed cutting!

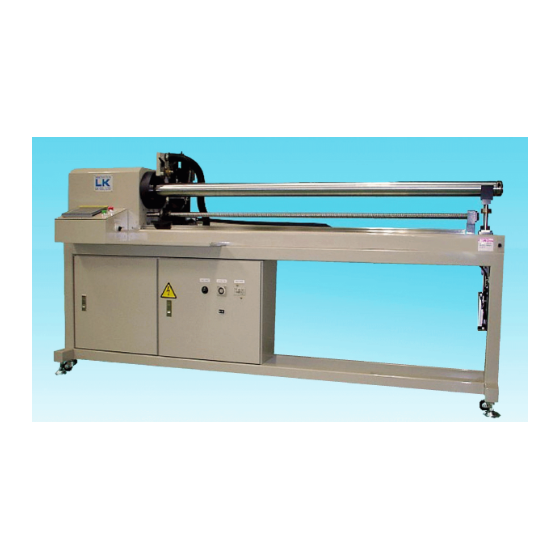

The APACC automatic paper tube cutting machine transfers cut data to an electronic scale and displays the knife position at 5mm intervals. By mounting this scale on the knife axis, the knife position can be determined based on the paper tube's cut data. The operator simply needs to move the knife to the position of the illuminated lamp to complete the knife assembly. 【Features】 ■ Digital set (easy input) ■ Automatic correction function for cutting dimensions (perfect fit function) ■ Sharp cutting surface ■ Compact and lightweight ■ Automatic chuck *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Basic Specifications】 ■ Target paper tube dimensions: 3 inches × maximum 1,400mm, 1,600mm, thickness 5–15mm ■ Cutting time: approximately 25 seconds per piece for 10 cuts (for length 1,200mm and thickness 6mm) ■ Cutting accuracy: ±0.2mm or less ■ Number of pattern memories: 6 patterns available at all times ■ Maximum number of cuts: 14 stages (for all pieces of different dimensions) × 99 pieces, etc. *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
We have developed various cutting machines for paper tubes, plastics, tapes, and fiber filters. We can assist with all types of cutting from an inner diameter of 12φ to 500φ. Please feel free to contact us if you have any requests.
