Stem Diameter Change Measurement" Plant Sensor "SE-SD Series
Stem Diameter Change Measurement Sensor Series
High precision, micro-variation support, compact low load!!

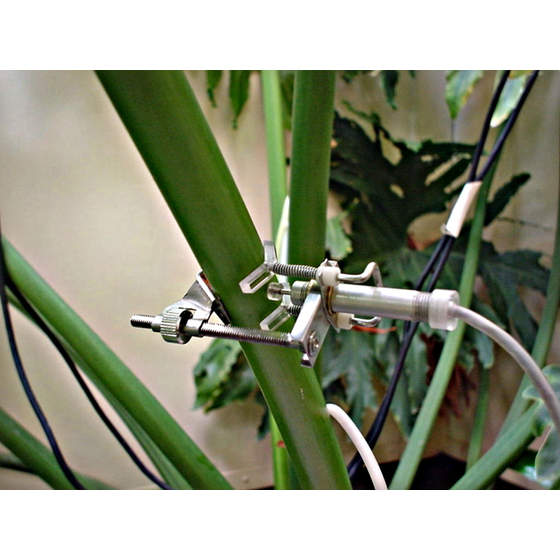

The stem diameter change measurement sensor is a high-precision LVDT sensor designed to monitor minute fluctuations in stem diameter in the micron range. The growth of plants and water balance affect the daily behavior of stem diameter, and the growth rate depends on the vegetative stage and environmental conditions. Daily fluctuations mainly represent variations in the plant's moisture content, and two data points—daily contraction changes and daily maximum values—are used to measure the moisture status of the plant. The SE-SD-5M series sensor measures the impact of water supply balance frequency and environmental factors on plant growth.
Inquire About This Product
basic information
- Measurement Range - Varies by type. Please check the lineup. - Resolution - Varies by type. Please check the lineup. - Power Supply - 10-30VDC - Operating Temperature - 0 to 50℃
Price range
P3
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
For more details, please refer to the catalog or feel free to contact us.
Line up（4）
| Model number | overview |
|---|---|
| SE-SD-5M | -Measurement Range- 0 to 5mm displacement (stem diameter 5 to 25mm) -Resolution- 0.002mm -Analog Output- 0-2V |
| SE-SD-5Mi | -Measurement Range- 0 to 5mm displacement (stem diameter 5 to 25mm) -Resolution- 0.002mm -Analog Output- 4-20mA |
| SE-SD-6M | -Measurement Range- 0 to 5mm displacement (stem diameter 20 to 70mm) -Resolution- 0.002mm -Analog Output- 0-2V |
| SE-SD-6Mi | -Measurement Range- 0 to 5mm displacement (stem diameter 20 to 70mm) -Resolution- 0.002mm -Analog Output- 4-20mA |
