Space-saving design that allows for multi-line production on existing production lines. Enhanced features such as program management of production conditions!

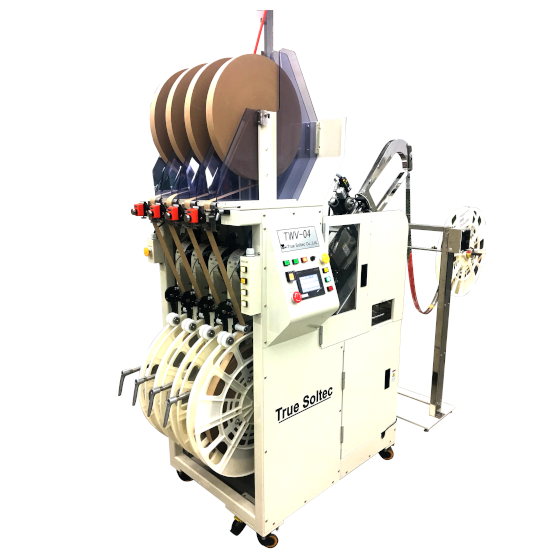

The "TWV-04" is a compact four-spindle vertical winding machine that achieves a size comparable to a typical two-spindle winding machine, allowing for multi-line production of terminals. Thanks to automatic speed control, reel changes can be made without the need for an accumulator, enabling space-saving installation and preventing issues with terminal deformation. Additionally, it is equipped with numerous features that contribute to defect prevention and efficiency, such as multi-stage adjustment of the shooter angle and program management of production conditions. 【Features】 ◆ Smooth setup changes due to motor control and automatic calculation of the shooter angle ◆ Layer paper can be set with a single touch, and tension is displayed on an indicator ◆ Production conditions such as speed and product pitch can be program-managed for up to 32 varieties ◆ Sensors prevent defects in sample cuts ◆ By integrating with inspection equipment, it allows for unified control of inspection and winding *For more details, please refer to the PDF document or feel free to contact us through our website.
Inquire About This Product
basic information
【Specifications】 - Target work: Box terminals or tab terminals *Special shapes require consultation - Winding speed: 5 to 20 m/min - Winding direction: Forward winding (reverse winding option available) - Winding reel outer diameter: Maximum φ650mm or maximum φ950mm - Winding reel inner width: 15 to 50mm *Special sizes require consultation - Interlayer paper outer diameter: Maximum φ500mm - Reel change: Automatic (application of interlayer paper is manual) - Sample cut: Available (automatic: cut length 50 to 150mm) - Interlock: Available *Safety cover opening and closing, reel set detection, interlayer paper break detection, etc. - Speed control: 5 levels (low, medium, high, pause, stop) - Device size: L1770×H1880×D949mm - Options: Image inspection device, automatic re-inspection function *For more details, please refer to the PDF document or feel free to contact us via our website.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us through our company website.
