Disaster prevention, fire, and emergency radio compatible! Vehicle-mounted whip antenna set for 260-275MHz band digital radio (drilling type).

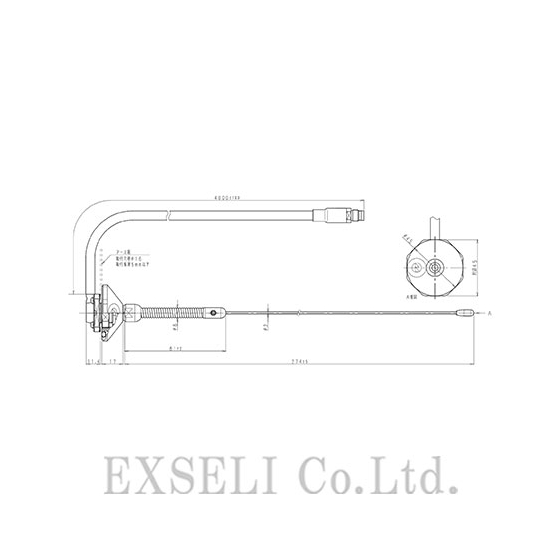

● The WH-260B-09 F=260-275 (set) is a 260MHz band vehicle-mounted drilling type antenna (5D-2V) manufactured by Nippon Antenna. ● It is an antenna for vehicle-mounted radios operating in the 260MHz band, such as digital disaster administrative wireless systems and fire and emergency digital radios. ● It is a capacitive ground λ/4 whip antenna. ※ A whip antenna is one that has no directivity and can receive and transmit signals from any angle. ※ λ (lambda) refers to wavelength. ● The compatible frequency range is 260MHz to 275MHz. ● This is a set product that includes a 1/4λ element (for WH) EL274 for the 260MHz band vehicle use and a drilling type base (element mounting part M-6 screw (5D-2V 4m) WH-BA5-M6-09. ※ The connector (attachment connector) is sold separately. ※ The element mounting part uses an M-6 screw. ● The installation location is the rooftop. ● Drilling installation work is required. This product is compatible with a mounting hole diameter of Φ16mm. ※ For more details, please feel free to contact us.
Inquire About This Product
basic information
●Accessories: 1 protective seal, 1 instruction manual ●Specifications ・Model: Grounded λ/4 whip antenna ・Type name: WH-260B-09 ・Application: Mobile station for vehicle use ・Operating frequency: 260–275MHz ・Input impedance: Nominal 50Ω ・VSWR: 1.5 or less within the band ・Absolute gain: Nominal 2.15dB ・Directivity: Vertical polarization, nominally omnidirectional in the horizontal plane ・Insulation resistance: 500MΩ or more at the feed point with DC500V when dry ・Withstand voltage: No abnormalities when AC1000V is applied for 1 minute at the feed point when dry ・Feed connector: Attachment connector ・Feed cable: 5D-2V, 4m ・Weight: Approximately 0.6kg ・Mounting method: Hole mounting ・Mounting location: Rooftop ・Remarks: Body mounting hole φ16mm, mounting plate thickness 5mm or less *For more details, please feel free to contact us.
Price information
Manufacturer's price: 22,800 yen (excluding tax) We aim to sell at a lower price than anywhere else. Please contact us for our selling price.
Price range
P2
Delivery Time
Applications/Examples of results
【Examples of Use】 ■ Firefighting and Fire Departments ■ Crisis Management ■ Oil Refineries, Chemical Plants, Power Plants ■ Neighborhood Associations ■ Security ■ Construction ■ Demolition ■ Taxis, Driving Services ■ Cranes, Heavy Machinery, Scaffolding ■ Underground ■ Electrical Work, Air Conditioning Work ■ Cleaning ■ Towing, etc.
