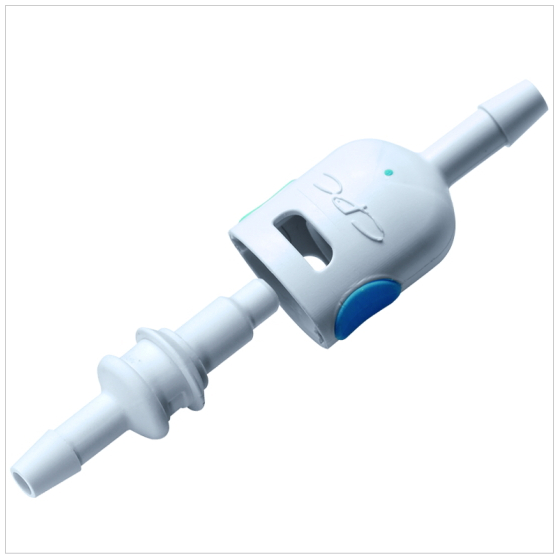

A super compact coupling developed for easy attachment and detachment, replacing lure fittings.
The SRC series improves cost-effectiveness by reducing the number of components through a simple structure and by not incorporating a shut-off valve, which is typically found in standard CPC couplings. The silhouette, free of protrusions such as buttons, facilitates use in environments with constraints on workability and space.
Inquire About This Product
Related Videos
basic information
● No compatibility with lures ▶ Prevents misconnection with different lines ● Click sound and feel upon connection ▶ Reliable and safe connection ● Connection part is rotatable ▶ Reduces twisting of the tube - Body: 2 items - Insert: 2 items - Combination of body and insert: 4 patterns SRC Specifications Operating pressure range: Vacuum to 0.18Mpa Applicable temperature range: 0℃ to 43℃ Cv value: 0.27 (3.89) max Material Main components: Polypropylene Seal: Thermoplastic elastomer
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
It is ideal for small-diameter piping applications that dislike liquid dripping, such as cooling water lines for small devices, scientific and analytical instruments, and printers.
