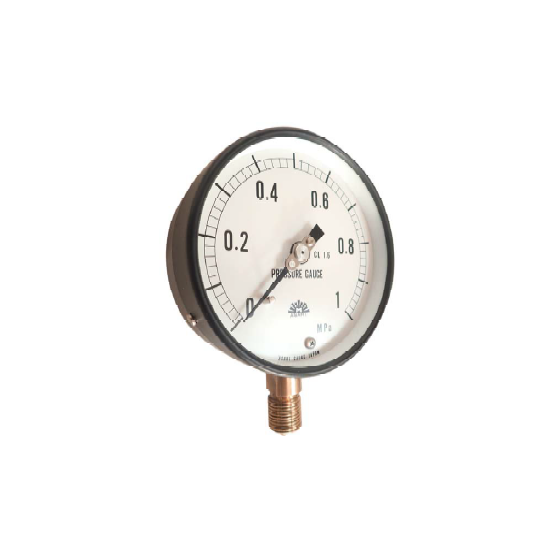

Usable in various fields! This is a general pressure gauge that complies with JIS B7505-1:2015 Bourdon tube pressure gauges.
This product is a general-purpose pressure gauge that complies with JIS B7505-1:2015 Bourdon tube pressure gauges. It is a pressure gauge with a simple structure that transmits the movement of the Bourdon tube to the pointer. It is easy to handle and has a wide pressure range, making it suitable for various fields. Reading the pressure indication is easy, and it can also accommodate situations where corrosion resistance is required. 【Features】 ■ A simple structure that transmits the movement of the Bourdon tube to the pointer ■ Wide pressure range, suitable for various fields ■ Easy to read pressure indications ■ Can accommodate situations where corrosion resistance is required *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Excerpt)】 ■Standard: JIS B7505-1: 2015 ■Sizes: φ60, φ75, φ100, φ150 ■Pressure Range ・0 to 0.04MPa to 0 to 160MPa ・-0.1 to 0MPa to -0.1 to 4MPa ■Connection Threads ・G1/4, G3/8, G1/2, R1/4, R3/8, R1/2 (We can also manufacture NPT threads, so please inquire.) ■Wetted Parts Material ・Body: Brass, Stainless Steel ・Bourdon Tube: Brass, Stainless Steel, Special Steel (Varies depending on pressure range and performance.) ■Case Material and Exterior ・A Frame: Iron (black painted) or Aluminum Alloy (brass anodized) ・B Frame: Zinc Alloy (black painted) ・D Frame: Aluminum Alloy (black) ■Case Structure: General Structure (IP40) ■Accuracy ・±1.6% F.S. ・±1.0% F.S. (not applicable for φ60, φ75) ・±0.6% F.S. (not applicable for φ60, φ75) *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Our company was founded in June of the 5th year of the Taisho era in the Minato Ward of Osaka City, with the aim of manufacturing and selling pressure gauges and gas regulation equipment. Since then, we have counted over 100 years, during which we have continuously engaged in relentless research and effort, earning a reputation as a comprehensive manufacturer of pressure gauges. We believe that the path to our existence lies in preserving tradition and trust, while continuously enhancing our technological capabilities through new ideas and relentless research and development, equipping ourselves to meet diverse needs and contribute to society.
