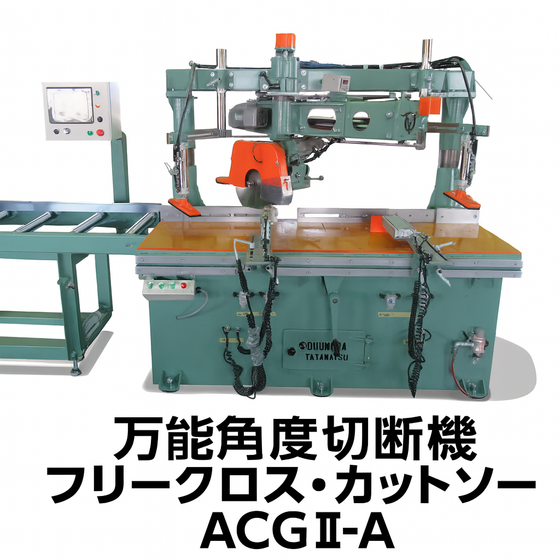

ACGII -A | Automatic Universal Angle Cutting Machine | Compatible with Aluminum Frames and Wood
ACG2-A Free Cross Cut Sewn Top
Height 120mm × Width 300mm, cuts at a 45-degree angle in one go! A circular saw cutting machine that can also handle angled corners with free angles.
The "ACGII-A" is a semi-automatic circular saw cutting machine that swings the arm left and right and tilts the blade axis, allowing for various angle cuts. 【Features】 ■ Cuts a width of 450mm × height of 120mm in one go with a blade diameter of 405mm! ■ Smooth sliding feel and high-precision bearings built-in. ■ Capable of straight cuts, various angle cuts, and groove processing. ■ Can cut wood at a 45° angle. ■ The column can be adjusted up and down with a handle for groove processing. *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
Related Videos
basic information
■Blade used: 405 mm ■Motor: 2.2 kW ■Arm swing angle: +60 degrees to -60 degrees ■Blade tilt angle: Left 45 degrees ■Maximum cutting capacity: Height 120 mm (4 inches) × Width 450 mm Options: - Sliding back support rule - Angle digital display - Rear chip collection cover, etc. *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
※The delivery date may vary, so please feel free to contact us.
Applications/Examples of results
【Uses】 ■ Butt joint cutting of interior materials such as baseboards, window frames, and picture frames ■ Angle cutting of aluminum sashes for handrails and caps ■ Corner cutting of partitions ■ 45-degree cutting of aluminum frame materials ■ Truss cutting of residential roofing materials ■ Cutting of feather edge materials in precut factories ■ Angle cutting of plywood
Detailed information
-
■Standard Equipment | Pneumatic Upper Clamp with Position Adjustment
-
■Standard Equipment | Backrest Ruler Aluminum Angle
-
■Options｜ Installation of automatic sizing device (auto positioner)
-
■Option | Left and Right Sliding Backrest Ruler
-
■Option | Angle display 0.05 degrees (3 minutes) unit
-
■Option | Front pressing air cylinder
-
■Option | Ball screw feed with inverter control for front and rear movement of the cutting tool (rodless specification)
-
■Option | Rear dust collection cover | Two dust duct openings included
-
■Option｜Semi-dry lubrication with cutting oil spray
Line up（2）
| Model number | overview |
|---|---|
| ACGII (manual type) | Mounting tool: φ405 Tool front and back: manual guide |
| ACGII-A (Automatic Type) | Mounting Tool: φ405 Tool Front and Back: Air Hydro Cylinder |
