Just by stacking it on top of a magnet, you can visually see the magnetization pattern! A reusable commercial magnet viewer sheet.
The view sheet visualizes the magnetic patterns of a magnet that are not visible to the eye. By tracing the surface with a magnet, you can erase the magnetic pole pattern on the view sheet. Therefore, it can be reused multiple times. There is a convenient pocketable size for portability and a larger size that is useful in design and manufacturing environments. It can be cut with scissors or a cutter for use.
Inquire About This Product
basic information

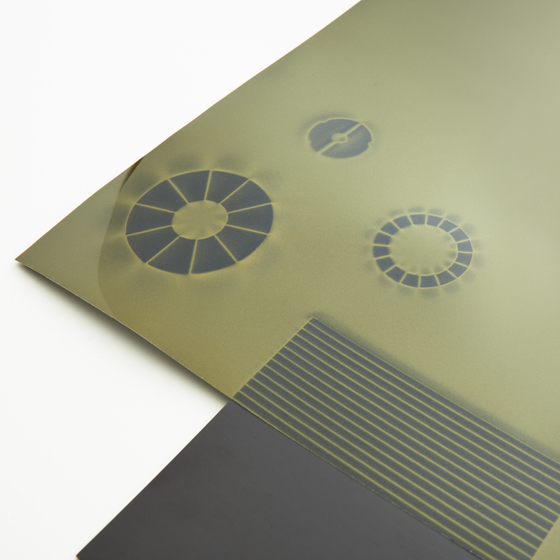

【Normal Type】 The magnetic fluid (gel-like) is uniformly enclosed within a film-like sheet, so when brought close to a magnetic force, the magnetic fluid reacts. The magnetic pole areas appear dense, while the boundaries where the magnetic poles switch appear faint, allowing one to discern the state of magnetism through the variations in the density of the magnetic fluid. 【High-Grade Type】 The sheet contains microcapsule ink with magnetic properties enclosed within a PET film-like layer, so when brought close to a magnetic force, the microcapsule ink reacts. The magnetic pole areas appear dense, while the boundaries where the magnetic poles switch appear faint, allowing one to discern the state of magnetism through the variations in the ink density. The high-grade type displays patterns more clearly than the normal type, enabling a more detailed understanding of the magnetic patterns. - For example, when you hold the view sheet over a laptop or tablet, you can locate the positions of magnets that are not visible from the front. Additionally, by holding the view sheet over a magnet, you can understand the magnetic pattern. - By tracing the surface with a magnet, the magnetic pole pattern on the view sheet disappears, allowing for repeated use. *Note: The view sheet visualizes the pattern of magnetic poles and cannot distinguish between N and S poles or verify magnetic field strength.*
Price range
Delivery Time
Applications/Examples of results
- Confirmation of the magnetization pattern of the magnet - Confirmation of the presence or absence of the magnet - Commercial use, inspection, education, magnet experiments, magnetic field confirmation, etc.
Line up（4）
| Model number | overview |
|---|---|
| Normal Type | 100✕100mm |
| Normal Type | 300✕300mm |
| High Grade Type | 100✕100mm |
| High Grade Type | 350✕400mm |
