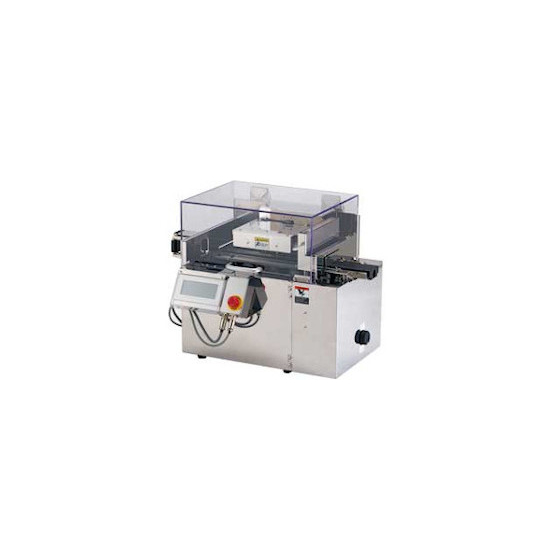

Length cutting machine for corrugated tubes can perform slitting processing after cutting.
Measure and cut without slitting, and then perform slitting processing before discharge. This eliminates misalignment of the cut edge due to crushing, achieving a clean processing surface. Slitting can also be done neatly with a rotary circular blade. Material supply without slippage is possible with belt conveyance. Standard external input and output are equipped, and safety is designed with a dedicated cover. Normal cutting without slitting is also possible. There is no longer a need to separate product inventory based on the presence or absence of slitting.
Inquire About This Product
basic information
- Easy operation with a touch panel - Switchable between "Japanese" and "English" - Equipped with a feed length correction function - Includes a lot counter function - Equipped with an emergency stop switch - Maximum transport speed of 800 mm/sec - Transport resolution of 0.05 mm (setting unit is 0.1 mm), improving repeat cutting accuracy - Compatible with various feeding devices - Belt movement by electric cylinder Processing example Product name: ZKC-325VFT-004 Feed speed *1 [mm/sec]: 50–800 Cut length setting unit [mm]: 0.1 Cut length [mm]: 0.1–999999.9 Number of cuts [pieces]: 1–999999 Repeat cutting accuracy *2 [mm]: ±0.2 Target work [mm]: Tube nominal diameter φ5–φ32
Price information
Please contact us.
Delivery Time
※Usually 2 months after receiving the order.
Applications/Examples of results
Collaboration with the material supply feeder allows for stress-free supply. Length measurement correction is completed simply by entering the set value and the actual length.
catalog（1）
Download All Catalogs
Company information
Our company is engaged in the development, manufacturing, sales, and maintenance of harness production-related equipment, including terminal crimping inspection devices, sensor units, and various control units. We also accommodate custom requests, provide consultation on construction methods, and offer development and manufacturing as well as model selection. Please feel free to contact us with any inquiries.
