LED light panel with built-in AC adapter semi-recessed frame (SL20 model).
This is a light guide plate type LED panel with a built-in AC adapter in a semi-recessed frame. It is a semi-recessed type with a thin panel installation. Since the AC adapter is built-in, there is no need to place an external power supply, and it can be used with a household outlet of AC 100-240V 50/60Hz.
Inquire About This Product
basic information
Media can be easily replaced with a snap frame that opens and closes. 【Light Emission Principle】 We adopt a light guide plate method. Light guide plate method: Light from LED chips is applied to the side of the light guide plate, illuminating the entire surface. Our LED panels have a brightness uniformity of over 80%, making them suitable not only as backlighting for signs but also for inspection and research purposes. 【Frame Width】 22mm 【Frame Thickness】 Total 38mm, Embedded 16mm 【Size】 External dimensions (including frame): Can be produced from a minimum of 200mm x 200mm to 2400mm x 1200mm Internal dimensions (light-emitting surface): External dimensions - (22mm + 22mm) 【Frame Material】 Aluminum 【Frame Color】 SV (Silver) BK (Black) WH (White) 【Specifications】 Built-in AC adapter
Price information
Please refer to the price list for LED light panels. https://www.lumitechno.co.jp/price.html For a quotation, please request a quote. Quote request: https://lumitechno.co.jp/price/html/Price.html
Price range
P2
Delivery Time
※14 days
Applications/Examples of results
【Sign】 Embedded Sign Panel - Commercial facilities - Public facilities - Stores - Galleries - Others

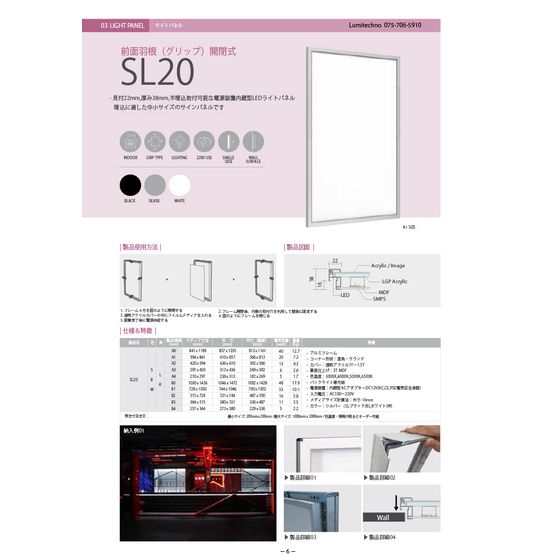

catalog（1）
Download All Catalogs
CAD data（11）
| Model number | overview | File |
|---|---|---|
| LED Light Panel SL20 |
|
|
| A0-L215-SL20R |
|
|
| A1-L215-SL20R |
|
|
| A2-S215-SL20R |
|
|
| A3-L115-SL20R |
|
|
| A4-L115-SL20R |
|
|
| B0-L215-SL20R |
|
|
| B1-L215-SL20R |
|
|
| B2-L215-SL20R |
|
|
| B3-S215-SL20R |
|
|
| B4-L115-SL20R |
|
Company information
Our LED light panels have been on sale since 2007 using a light guide plate method. To maintain uniform brightness on the light source surface, the light guide plates are custom-made according to size, and by designing each one individually, we achieve a uniform light guide plate with a brightness uniformity of over 80%. For LED chips, you can choose from warm white at 3000K, white at 4000K, daylight white at 5000K, daylight color at 6500K, RGB chips, and variable color temperature LED chips ranging from 2700K to 6500K. However, the variable color temperature type is only available for sheet-type light guide plates and cannot be produced in panel type. The lifespan of the LEDs is approximately 40,000 to 50,000 hours, and there are facilities and stores that have been using our products for 10 years. They are widely adopted as menu boards in commercial facilities such as food courts and photo panels. As a light source, our products are appreciated for their high surface brightness uniformity, and products with a diffusion plate specification are used as light sources for visual inspections and image inspections by major manufacturers. Additionally, module-type surface light sources without a snap frame are ideal as alternative light sources for existing signs, architectural lighting, and display lighting.
