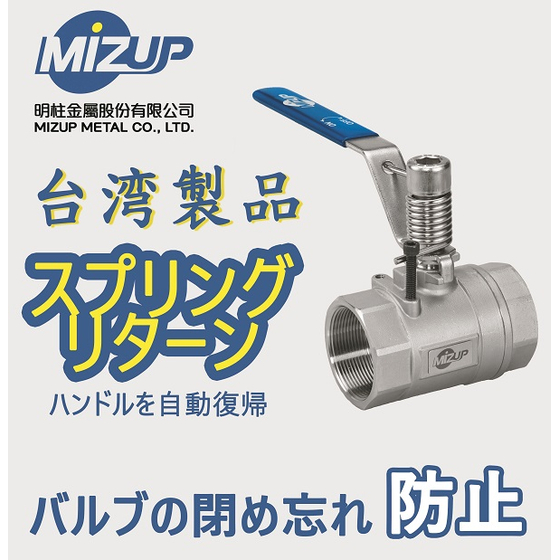

Taiwan MIZUP product "Screw-in Spring Return Ball Valve"
Taiwan MIZUP Manufacturing
Solve the problem of accidentally forgetting to close! This popular product ensures it closes just by letting go, providing a low-cost solution for forgetting to close.
This is a convenient valve that can be easily opened by hand when necessary, and when you let go, the handle returns to its original position and closes due to the spring's elasticity. It is recommended for piping that you definitely want to keep closed or places where you might forget to close it. There is no need for an expensive actuator. It is referred to as a Deadman Valve overseas, as it is designed to close automatically in the event of an emergency, such as if the operator controlling the valve were to become incapacitated. This product is ideal for those on-site who want to solve the problem of forgetting to close the valve at a low cost!
Inquire About This Product
basic information
【Specifications】 ■ Pressure rating: 2000 WOG (approximately 14 MPa) ■ Diameter: 8A to 50A ■ Material: CF8M (equivalent to SUS316) ■ 2-piece structure ■ Connection method: PT, PF, NPT selectable ■ Reduced bore * Applicable fluids: Water / Oil / Other non-hazardous fluids (at normal temperature and pressure) * For more details, please request documentation or view the PDF data available for download. ★ This product is listed on Amazon ★ If you need to obtain it urgently, it is also available on the Amazon site, so please make use of that option. ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ Amazon listing site: https://www.amazon.co.jp/dp/B0BST9VP9C?ref_=cm_sw_r_apin_dp_P2E2DVKY87H02E3Y8KJR
Price information
The price varies depending on the quantity, so please feel free to contact us.
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Our Japanese staff is always available, so please feel free to contact us. We are looking for agents. Please feel free to inquire.
