A high-power circulator suitable for protection of high-power high-frequency sources (such as klystrons).
We would like to introduce the "High Power Circulator" handled by Nippon High Frequency Co., Ltd. The Y-shaped design uses permanent magnets for the external magnetic field, making it compact and maintenance-free. It has a structure that can sufficiently withstand high reflected power with low insertion loss and high isolation. We offer custom designs according to frequency and power conditions. Design using an electromagnetic field simulator (HFSS) is also conducted. Additionally, we have a "High Power Dummy Load" that can handle power levels up to the megawatt class. 【Features】 ■ Structure that can sufficiently withstand high reflected power with low insertion loss and high isolation ■ Y-shaped design using permanent magnets for the external magnetic field ■ Compact and maintenance-free ■ Custom design available according to frequency and power conditions ■ Design conducted using an electromagnetic field simulator (HFSS) *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information

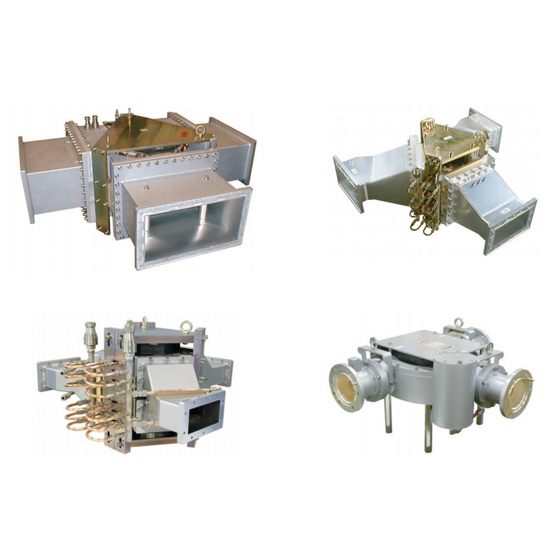

【Lineup (Excerpt)】 ■ High Power Circulators - 324MHz Waveguide Circulator - 972MHz Waveguide Circulator - 1300MHz Waveguide Circulator - 476MHz Coaxial Circulator ■ High Power Dummy Loads - 324MHz Coaxial Dummy Load - 1250MHz Waveguide Water Load - 508MHz Waveguide Water Load ■ Waveguide and Coaxial 3D Circuits - 324MHz 3MW Waveguide 3D Circuit *For more details, please refer to the PDF materials or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Purpose】 ■ For the protection of high-power high-frequency sources (such as klystrons) *For more details, please refer to the PDF document or feel free to contact us.*
