This is the latest industry model that has achieved a reduction in dust concentration during the supply of quick-setting agents!

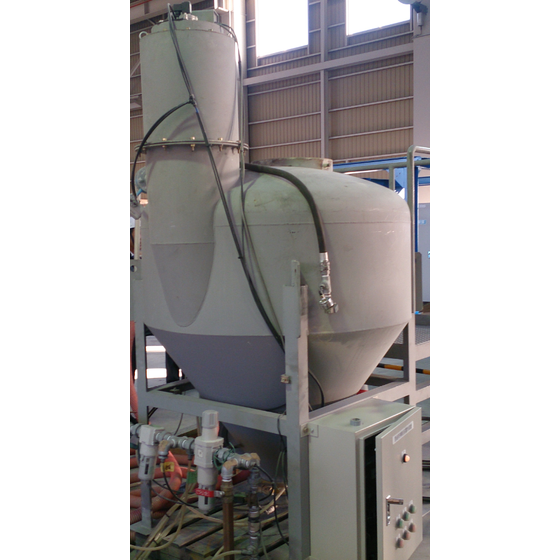

This is an automatic replenishment device for powder quick-setting agents at tunnel sites [Patent obtained: 5127734]. With the push of a button, replenishment work can be carried out, contributing to the efficiency and labor-saving of post-spraying operations. Additionally, the weight of the powder in the addition device is recorded every minute and saved to an SD card, allowing for management of the consumption of quick-setting agents. Quick-setting agents are highly alkaline substances (pH 11), which have raised concerns regarding various health issues such as dermatitis and pneumoconiosis. This device minimizes dust concentration, allowing for safe use without contaminating the underground environment. [Features] - No need for replenishment work during spraying - Reduction of dust concentration - Management of quick-setting agent consumption is possible - Prevents quick-setting agents from absorbing moisture, enabling stable spraying
Inquire About This Product
basic information
- Transfer capacity: 150 kg/min - Stock tank: 1.3 m³ (capable of handling 3 m³) - Main body pressure resistance: less than 0.2 MPa - Air source: 0.7 MPa / 2.1 m³/min dry air - Receive filter: 10 m 0.5 µm × 90% D.O.P - Power supply: AC200V 3 φ 1.5 kW - Delivery hose: φ65 × 4 m - Suction hose: φ38 × 5 m - Empty weight: 450 kg
Price range
Delivery Time
Applications/Examples of results
Supply of quick-setting agent at the tunnel site.
Detailed information
-
Touch panel monitor screen
-
Management of consumption and supply history
