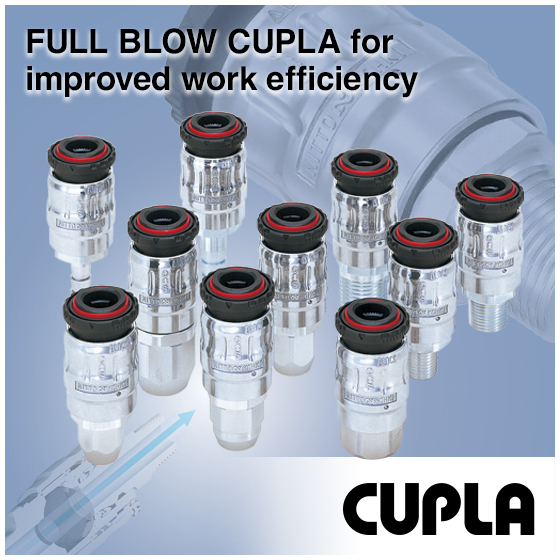

Flow rate increased by approximately 40% (compared to our company). Fitting "Full Bore Coupler".
Achieving low pressure loss and high flow rate with our unique technology! During separation, the residual pressure on the plug side is exhausted, eliminating unpleasant noises and recoil. *Video available.
The "FBH Series" is a quick fluid connector for air piping. It features a built-in shut-off valve that allows for opening and closing operations while remaining connected, and with the sleeve lock function, it can be locked in either the open or closed valve state. Additionally, when the valve is closed, it purges (exhausts) the residual pressure on the plug side, and its unique valve mechanism minimizes pressure loss while achieving high flow rates. 【Features】 ■ Smooth connection and separation ■ Built-in shut-off valve ■ Sleeve lock function ■ Residual pressure purge function ■ High flow rate and low pressure loss ■ Lightweight *For more details, please refer to the PDF materials or feel free to contact us.
Inquire About This Product
Related Videos
basic information
【Specifications (Partial)】 ■ Main body material: Aluminum alloy ■ Mounting sizes ・ For screws and hose mounting: R1/4 to R1/2, Rc1/4 to Rc1/2, 1/4 to 1/2 hose ・ For urethane hose mounting: ø6.5×ø10, ø8×ø12, ø8.5×ø12.5, ø11×ø16 hose ■ Maximum operating pressure: 1.5MPa {15kgf/cm2} ■ Pressure resistance: 2.0MPa {20kgf/cm2} ■ Vacuum application compatibility: Not suitable both when standalone and when connected * For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■Air piping *For more details, please refer to the PDF document or feel free to contact us.
