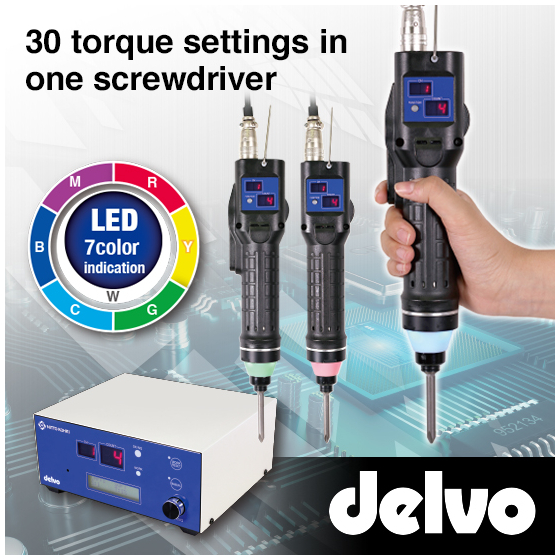

30 torque and fastening settings can be set on a single screwdriver! 2 fastening modes for enhanced quality at low speed and improved efficiency at high speed
"delvo" Brushless Type C Series DLV45C is a current controlled electric screwdriver that allows up to 30 different torque settings in a single unit. 2 models are available: DLV45C12L (Lever start) DLV45C12P (Push to start) With automatic three step speed control function, it enables both high-quality fastening at low speed and efficient operation at high speed. To prevent unintended setting changes, a password lock option is available when entering channel setting mode. Features: ■ Current controlled torque system ■ Low-voltage brushless motor ■ ESD (Electrostatic Discharge) protection ■ For both hand-held / automatic machines ■ Nine speed settings available For more details, please refer to the PDF catalog or feel free to contact us.
Inquire About This Product
Related Videos
basic information
Additional Features: - Automatic three step speed control function - Two types of measuring methods (Time / Motor rotation signal) - Seven color indication LED (At the tip of the screwdriver) - Two external I/O signal connection ports (NPN/PNP switchable, RS-232C) - Various settings can be configured via a PC (Free setting software available on Nitto Kohki website) - Built-in screw counting function For more details, please refer to the PDF catalog or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF catalog or feel free to contact us.
