Providing silent, low power, and optimal SWaP (Size, Weight, Power) performance through piezo technology.
Nanomotion's shutter technology optimizes SWaP (Size, Weight, and Power) by applying piezo technology, making it usable even in the most challenging environments (various temperatures, shocks, vibrations). It is active in fields such as IR image sensors.
Inquire About This Product
basic information

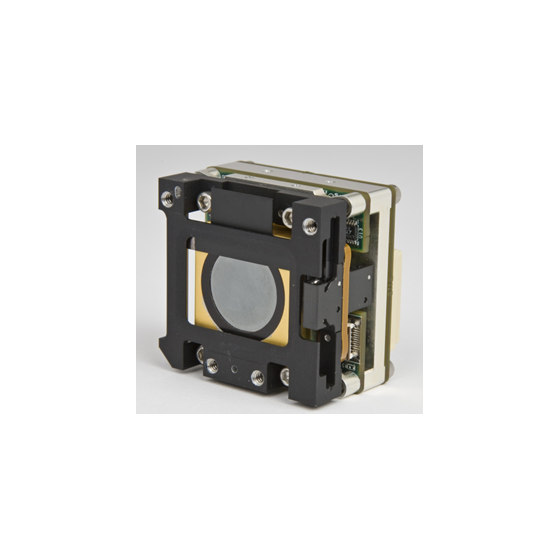

The S787 is a linear shutter combined with Nanomotion's EDGE motor. It enables an ultra-lightweight configuration while optimizing the distance from the focal plane array (FPA). The shutter is equipped with a movable blade measuring 17×15mm, capable of moving 15mm in 100ms. The movable blade is supported on one side by a bearing structure integrated within the EDGE actuator and by external shaft bearings to eliminate blade deflection and vibration. Additionally, Nanomotion offers an evaluation kit. This evaluation kit supports two operating modes: GUI mode using a PC and FPGA mode utilizing I2C communication. In GUI mode, users can install a dedicated Windows application on their PC to control the shutter. 〇 Key Features - Compact and lightweight 14.7x17.0mm 15g - Excellent quietness 15dB (5m) - High emissivity (blade) Over 94% (wavelength 8–14μm) - Environmental resistance Compliant with MIL-STD-810F - User-friendly control Built-in driver, I2C communication
Price range
Delivery Time
Applications/Examples of results
Infrared camera / Products compliant with MIL-STD-810F, etc.
