Despite being a rack mount chassis, it is a short-sized 4U case with a depth of less than 400mm!

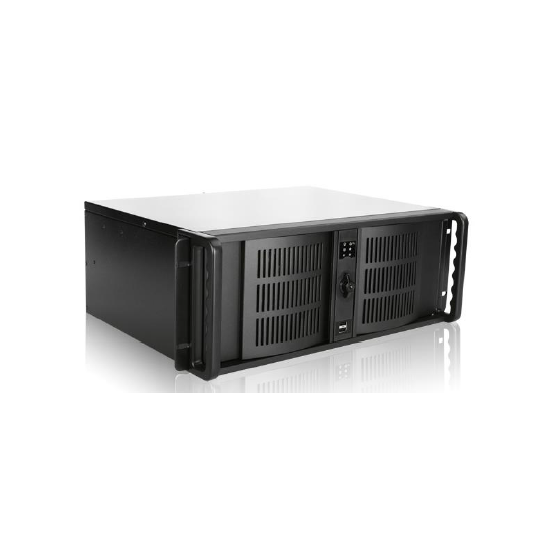

The "Ci7-6700Q170.WES7E/4US/16G/iSLC32G/SDCR" is a 4U rack-mounted system with a depth of less than 400mm, equipped with a Nipron power supply. It comes standard with a multi-memory card reader/writer. The main components are sourced from suppliers with long-term availability (expected supply until 2030). Specifications can be modified with additional or replacement parts. 【Features】 ■ A short-sized 4U chassis with a depth of less than 400mm, despite being rack-mounted ■ Main components sourced from suppliers with long-term availability (expected supply until 2030) ■ Equipped with a Nipron power supply ■ Features cost-effective iSLC technology SSD ■ Comes standard with a multi-memory card reader/writer *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Excerpt)】 ■CPU Performance: Intel Core i7 6700 ■Basic Specifications: Intel Q170 (PCIe3.0[x16] x1, PCIe3.0[x4] x2, 32bitPCI x3) ■Memory Capacity: 16GB (8GB DDR4 SDRAM x2) ■HDD Capacity: 32GB SSD iSLC ■Other Drives: Multi-memory card reader/writer ■Video Performance: Intel HD Graphics 530 (VGA/DVI-D/DP) ■Sound Function: 5.1ch High Definition Audio ■PC/Chassis Specifications: Short size 4U rack mount (H 178 x W 483 x D 348 mm) ■Network Function: Dual Gigabit Ethernet (Intel I210 + I219LM PHY) ■Power Supply Specifications: Nipron 500W power supply unit *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Case Studies】 ■Image Inspection Equipment, and Others *For more details, please refer to the PDF document or feel free to contact us.
catalog（2）
Download All Catalogs
Company information
Our company manufactures and sells industrial and embedded computers. In addition to being able to create enclosures from just one unit, including for older operating systems, we are a manufacturer that can provide long-term supply and support to meet various needs. We would appreciate it if you could take a look at our website first. Thank you very much. Our website: https://techpal.co.jp/
