A wind tunnel testing device that can adjust the airflow area by connecting units measuring approximately 70cm on each side. *Demo video available.

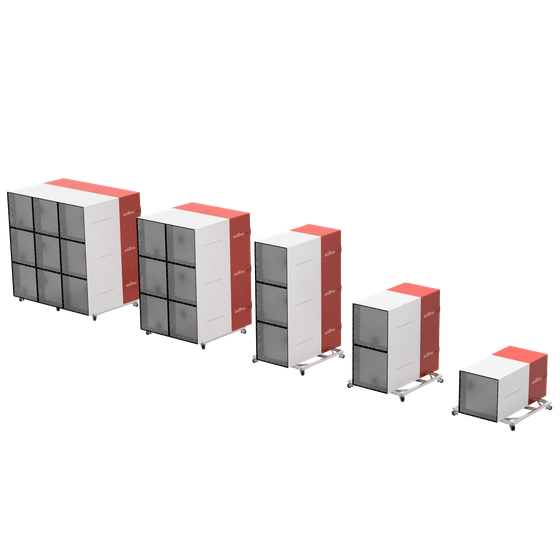

The Aero Optim-Cell series is a "stackable wind tunnel unit." All functions of the wind tunnel (blowing, diffusion, equalization, rectification) are consolidated into a unit sized 700mm x 700mm, allowing for the flexible realization of the required blowing area by stacking the units. We offer flexible solutions for wind tunnel testing, which is often perceived as expensive, at a more affordable price. 【Measurement Platforms】 For bicycles, competitive wheelchairs, 6-axis measurement platforms, etc. 【Blowing Related】 Additional rectification sections, additional contraction units, etc. *Please view the demo video below. For more details, please contact us or download the PDF for more information.
Inquire About This Product
basic information
Model Name: Aero Optim-Cell Wind Speed: 1 to 15 m/s Wind Speed Distribution: ±8% Speed Variation Rate: Below 1% Outlet Dimensions (W×H, mm): 630 × 630 Body Dimensions (L × W × H, mm): 1420 × 690 × 690 Fan: 5 kW BLDC Motor, Axial Flow Fan Noise Level: Below 115dB (maximum) Weight: 90 kg Required Power Supply: DC Power Supply: AC200V 3-phase 50/60Hz Includes software for wind speed measurement It is possible to use the basic unit alone, but additional options can improve flow quality and add measurement functions. *Please view the demo video below. For more details, please contact us or download the PDF for more information.*
Price information
Please feel free to contact us. We will provide you with a quote.
Delivery Time
※It will be made to order.
Applications/Examples of results
【Applications】 ■Wind tunnel testing (Aerodynamic tests such as drag tests and visualization tests using smoke, etc.) ■Wind resistance testing (Wind resistance performance tests for tents, umbrellas, structures, etc.) *For more details, please refer to the PDF document or feel free to contact us.
Detailed information
-
Measurement of air resistance for a road bike using the old-style Aero Optim-S (equivalent to Cell 6 unit).
-
Visualization test of airflow in a sports car using the old-style Aero Optim-S (equivalent to Cell 6 unit).
-
Wind resistance test of a drone using the old-style Aero Optim-S (equivalent to Cell 6 unit).
-
Testing of a wind turbine using the old-style Aero Optim-S (equivalent to Cell 6 unit).
