Measure fabric density (weft and warp) and angle quickly and accurately anytime, anywhere.

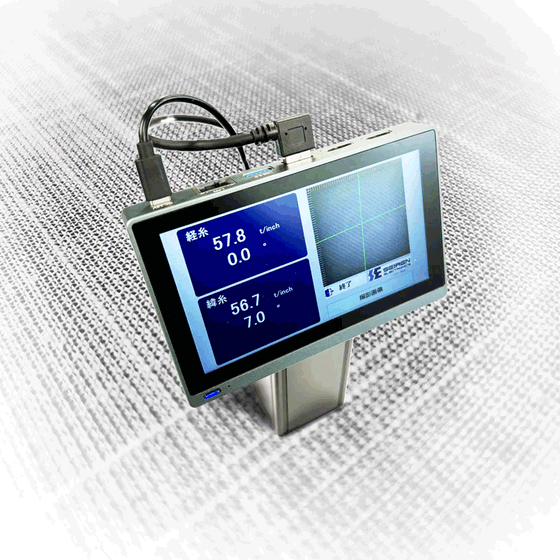

The "PDM-1" is a device that measures fabric density (weft and warp) and angle quickly and accurately. It is compatible with woven and knitted fabrics, and can also accommodate industrial materials with woven structures. The device is portable due to its configuration with a dedicated PC. 【Features】 ■ Accurate measurement (equipped with high-sensitivity sensors and light sources for high-precision measurement) ■ Excellent portability (the configuration with a dedicated PC allows measurements to be taken anywhere) ■ Data analysis (results can be saved at any time during continuous measurement and exported as CSV) *For more details, please feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■ Minimum work size: □50mm Φ50mm ■ Detection density range: 20 to 200 pieces/inch ■ Resolution: ±0.1 pieces/inch ■ Sensor dimensions: Φ70mm×190mm (total length Φ70mm×225mm) ■ Sensor weight: 800g ■ Control method: Computer ■ Power supply: AC100~240V 50/60Hz ■ Battery life: Approximately 3 hours ■ Options: External output via Modbus communication *For more details, please feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please feel free to contact us.
