With one tool, you can easily install, test, maintain, and measure solar panels and solar power systems.

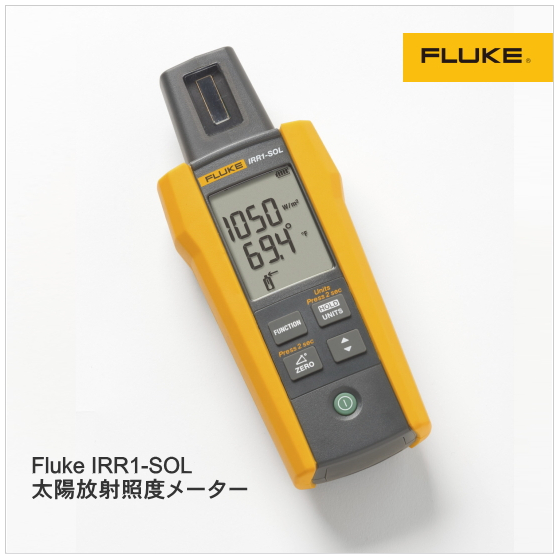

The Fluke FLK-IRR1-SOL solar irradiance meter allows you to perform all four essential measurements in a single user-friendly tool when investigating, installing, maintaining, and checking the performance of solar panels and photovoltaic systems. It instantly measures the solar irradiance in watts per square meter as required by the IEC 62446-1 standard. You can place the meter directly on the panel or connect an external probe to measure temperature. Use the compass to check the orientation and the tilt function to verify the slope of the roof or panel. It can carry out all the critical measurements necessary for the installation and verification of solar power systems. Additionally, it also provides reports on the performance of solar power systems. Key Features: - Measures solar irradiance, ambient temperature, PV module temperature, array orientation, and tilt angle - Instantly measures solar irradiance in watts per square meter as required by the IEC 62446-1 standard - Equipped with a large character display and high-contrast LCD for readability even in direct sunlight - Comes with a convenient carry case with a shoulder strap
Inquire About This Product
basic information
Radiant Intensity ■ Measurement Range: 0 to 1400 W/m² ■ Resolution: 1 W/m² ■ Measurement Accuracy: ± (5 % + 5 digits) Temperature Measurement ■ Measurement Range (°C): -30 °C to 100 °C ■ Resolution: 0.2 °F (0.1 °C) / 1 °F @ >100 °F ■ Measurement Accuracy: ±1 °C @ -10 °C to 75 °C, ±2 °C @ -30 °C to -10 °C and 75 °C to 100 °C Note: Temperature measurement response time: ~ 30 seconds Tilt Angle ■ Measurement Range: -90° to +90° ■ Resolution: 0.1° ■ Measurement Accuracy: ±1.5° @ -50° to +50° ±2.5° @ -85° to -50° and +50° to +85° ±3.5° @ -90° to -85° and +85° to +90° Direction ■ Measurement Range: 0° to 360° ■ Resolution: 1° ■ Measurement Accuracy: ± 7° Note: a) Measurement values are valid with the instrument tilted between -20° to horizontal and +20° to horizontal. Outside the above range, "---" will be displayed on the LCD. b) Results are considered magnetic north.
Price range
Delivery Time
Applications/Examples of results
Main Uses ■ Design and Survey of Solar Power Generation Systems To determine the expected power generation at the site, solar resources are identified while considering shading. Solar resources are measured at peak sunlight hours: the amount of solar energy is 1 kilowatt per square meter per day. Peak sunlight hours are influenced by location, time, season, and weather conditions. Using the Fluke IRR1-SOL, actual solar irradiance (watts/m²) and shading at the site are identified to create a baseline. ■ Measurement Once the system is installed, the electrical characteristics of the system and the actual solar output are measured to ensure it operates as designed. The performance of the solar array is based on the current-voltage (IV) curve. Using the IRR1-SOL, the amount of solar irradiance needed to calculate the output IV curve is obtained. ■ Comparison and Diagnosis Even if installed correctly, a solar power generation system may not produce the expected electrical output. To generate the anticipated output, the system must receive the correct amount of irradiance energy and generate the DC voltage supplied to the inverter.
