This is a low-power board computer equipped with the Renesas Electronics RX62T.

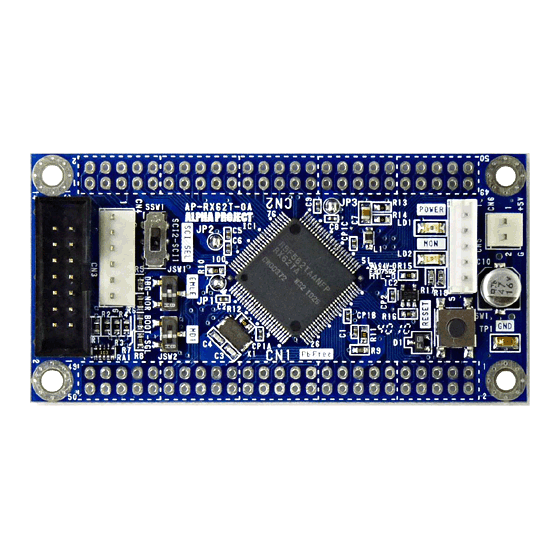

The AP-RX62T-0A is equipped with the RX62T, featuring a low price, compact size, and connectors for serial and CAN communication.
Inquire About This Product
basic information
- Operating frequency: Maximum 96MHz (12MHz crystal oscillator) - Equipped with Flash ROM (for program storage) 256KByte, Flash ROM (for data storage) 32KByte, and RAM 16KByte - Equipped with a multifunction timer suitable for motor control - Equipped with a total of 20 channels of A/D converters, 8 channels at 12 bits and 12 channels at 10 bits - Equipped with a connector for serial communication - Equipped with a connector for CAN communication - All circuit diagrams are publicly available
Price information
¥5,600 (including tax ¥6,160)
Price range
P1
Delivery Time
※The delivery date may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Ideal for various prototypes and small lot products.
Company information
Our company is engaged in the development of microprocessor application systems, electronic circuit design and manufacturing, firmware development, and PC software development, providing comprehensive solutions to challenges such as the diversification of customer needs, shortening product cycles, and cost reduction.
