The planetary gear head adopts "IG-22V"! Products with starting currents of 1040mA, 1310mA, and 2020mA are available.

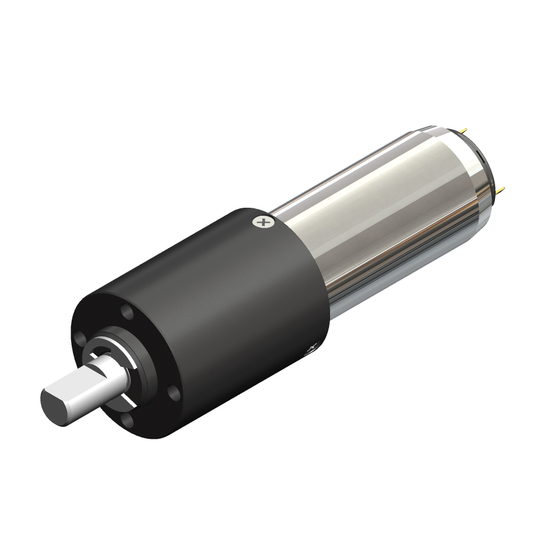

We would like to introduce the 'φ22 geared motor' that uses the coreless motor "SCR17-35××" handled by Citizen Micro Co., Ltd. The reduction ratio ranges from 4 to 509, and the planetary gear head adopts "IG-22V". Our company offers approximately 3,000 types of geared motors as standard products, using either planetary gear heads (outer diameter φ8 to 24, □43) or spur gear heads (outer diameter φ12 to 42 or special shapes). 【Lineup (partial)】 ■ IG-22VM-SRU3551B-06 DC6V ■ IG-22VM-SRU3552B-06 DC6V ■ IG-22VM-SRU3551B-12 DC12V ■ IG-22VM-SRU3553B-12 DC12V ■ IG-22VM-SRU3554B-12 DC12V *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【IG-22VM-SRU3551B-06 DC6V Specifications (Excerpt)】 ■ Reduction Ratio: 4 (1/i) ■ No-load Rotational Speed: 1160 min-1 ■ Rated Rotational Speed: 867 min-1 ■ Rated Torque: 9.32 mNm / 0.10 kg·cm / 1.32 oz·in ■ Starting Torque: 36.9 mNm ■ Length (L): 52.9 mm ■ Rotation Direction: CW *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
At Citizen Micro, we have developed and manufactured thousands of types of geared motors since 1964, based on the ultra-precision processing technology cultivated through the manufacturing of CITIZEN watch parts. We continue to challenge ourselves to innovate micro geared motors with the themes of "smaller, more precise, quieter, and more powerful." The products independently developed, designed, and manufactured by Citizen Micro are highly regarded worldwide for their precision and performance, and are widely used in various fields such as medical devices, industrial equipment, optical instruments, and robotics. By applying this excellent technology, we actively engage in the development of customized products through joint development with our customers to more accurately capture their needs and solve problems.
