The product lineup includes starting currents of 2060mA, as well as 2300mA, 1550mA, and 379mA!

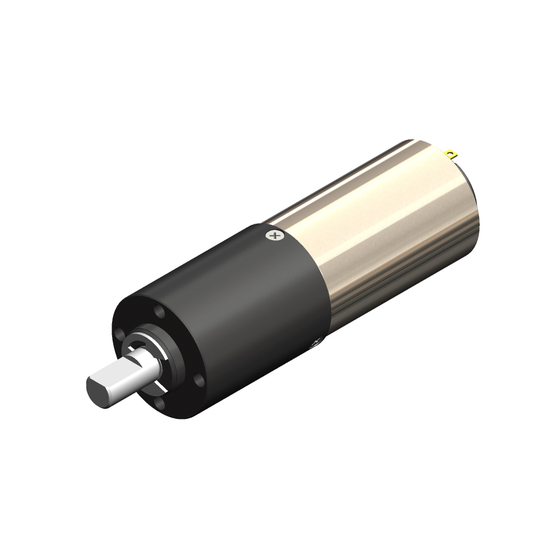

We would like to introduce the 'φ22 geared motor' that uses the coreless motor "SC21-37××" handled by Citizen Micro Co., Ltd. A geared motor is a general term for a combination of a motor and a reduction gear. It adopts the "IG-22V" planetary gear head, with a reduction ratio ranging from 4 to 509. By combining a geared head that meets your specifications (our standard products have a gear ratio of 1/4 to 1/3000), we achieve the desired rotational speed and torque. 【Lineup (partial)】 ■ IG-22VM-SRY3702B-06 DC6V ■ IG-22VM-SRY3703B-12 DC12V ■ IG-22VM-SRY3705B-12 DC12V ■ IG-22VM-SRY3710B-24 DC24V ■ IG-22VM-SRY3714B-24 DC24V *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【IG-22VM-SRY3702B-06 DC6V Specifications (Excerpt)】 ■ Reduction Ratio: 4 (1/i) ■ No-load Rotational Speed: 1630 min-1 ■ Rated Rotational Speed: 1310 min-1 ■ Rated Torque: 9.81 mNm / 0.10 kg·cm / 1.39 oz·in ■ Starting Torque: 50.0 mNm ■ Length (L): 53.5 mm ■ Rotation Direction: CW *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
At Citizen Micro, we have developed and manufactured thousands of types of geared motors since 1964, based on the ultra-precision processing technology cultivated through the manufacturing of CITIZEN watch parts. We continue to challenge ourselves to innovate micro geared motors with the themes of "smaller, more precise, quieter, and more powerful." The products independently developed, designed, and manufactured by Citizen Micro are highly regarded worldwide for their precision and performance, and are widely used in various fields such as medical devices, industrial equipment, optical instruments, and robotics. By applying this excellent technology, we actively engage in the development of customized products through joint development with our customers to more accurately capture their needs and solve problems.
