The lineup includes products with starting currents of 4930mA, 3940mA, 3150mA, and 2620mA!

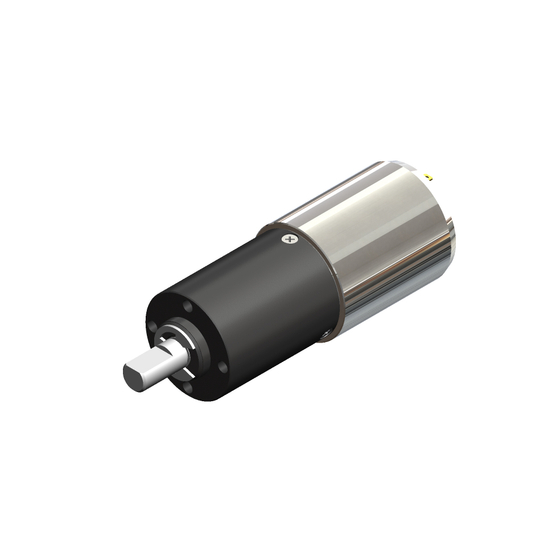

We would like to introduce the 'φ24 geared motor' that uses the coreless motor "SC24-32××" handled by Citizen Micro Co., Ltd. The planetary gear head adopts "IG-22V" and offers products with a reduction ratio ranging from 4 to 509. Our company achieves the desired rotational speed and torque by combining geared motors with gear heads tailored to your specifications (our standard products have gear ratios from 1/4 to 1/3000). 【Product Lineup】 ■ IG-22VM-SRN3201B-09 DC9V ■ IG-22VM-SRN3202B-12 DC12V ■ IG-22VM-SRN3203B-18 DC18V ■ IG-22VM-SRN3204B-24 DC24V *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【IG-22VM-SRN3201B-09 DC9V Specifications (Excerpt)】 ■ Reduction Ratio: 4 (1/i) ■ No-load Rotational Speed: 2380 min-1 ■ Rated Rotational Speed: 2120 min-1 ■ Rated Torque: 14.7 mNm / 0.15 kg·cm / 2.08 oz·in ■ Starting Torque: 135 mNm ■ Length (L): 48.7 mm ■ Rotation Direction: CW *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
At Citizen Micro, we have developed and manufactured thousands of types of geared motors since 1964, based on the ultra-precision processing technology cultivated through the manufacturing of CITIZEN watch parts. We continue to challenge ourselves to innovate micro geared motors with the themes of "smaller, more precise, quieter, and more powerful." The products independently developed, designed, and manufactured by Citizen Micro are highly regarded worldwide for their precision and performance, and are widely used in various fields such as medical devices, industrial equipment, optical instruments, and robotics. By applying this excellent technology, we actively engage in the development of customized products through joint development with our customers to more accurately capture their needs and solve problems.
