Maintain three-phase balance! It is also used for connection with solar power generation systems and storage systems.

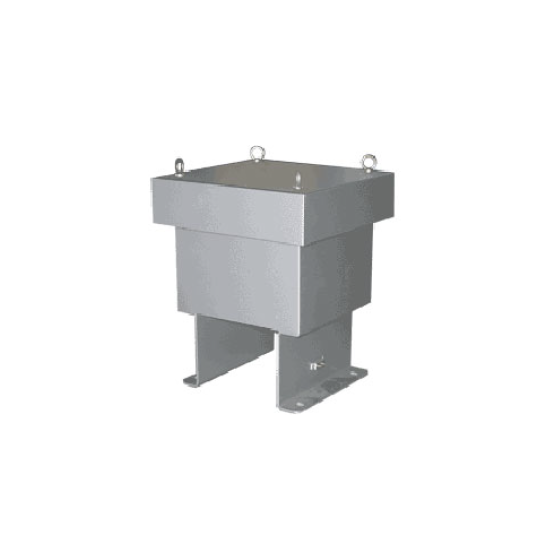

"Scott Transformer" is one of the transformers that converts three-phase power to single-phase power. When converting from three-phase to single-phase, it can be problematic if the balance of each phase on the input side of the transformer is disrupted. If the output side has two circuits with the same capacity load, it is possible to balance the three phases on the input side. Recently, it has been used in three-phase generators and solar power storage systems, among others. 【Features】 ■ The secondary side (output side) of the transformer consists of two single-phase circuits. ■ When the output side has two circuits with the same capacity load, it is possible to balance the three phases on the input side. *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Usage Precautions】 ■ The two circuits on the secondary side (output side) must be used completely independently. ■ Connecting the two circuits on the secondary side (output side) in parallel (combining into one circuit) will cause a short circuit and is very dangerous. ■ The load capacity distribution used in the two circuits on the secondary side (output side) should be of the same capacity. Although it does not affect the transformer if they are not of the same capacity, it will cause unbalanced current on the primary side's three-phase system. *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■ Three-phase generators, solar power storage systems, etc. *For more details, please refer to the PDF document or feel free to contact us.*
