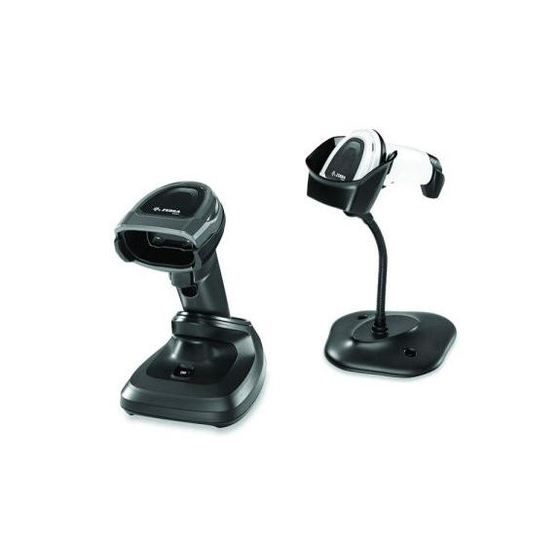

Ultra-high-performance handheld scanner DS8100 series [1D/2D compatible]
Improving operational efficiency with unprecedented scanning performance.
The DS8100 series far surpasses conventional scanners, providing exceptional scanning performance. It achieves high-performance reading for any type of barcode, features an excellent scanning range, and is equipped with a battery that allows for continuous scanning for 24 hours. It enhances operational efficiency in all scenarios where barcode reading is required. Wired model: DS8108 Wireless model: DS8178 <Features> - Difficult-to-read barcode scanning - Bulk scanning of multiple barcodes - Long operating time of 83 hours on a full charge (Note 1) [Loan units available] [Estimates available from 1 unit] *For those wishing to request a loan unit or estimate, please check "Other" in the "Requests" section of the inquiry form below and write "Loan unit/Estimate request" in the remarks before contacting us. *Note 1: Simulation results under certain conditions.
Inquire About This Product
basic information
【DS8108】 Dimensions (HxWxD): 16.8 cm x 6.6 cm x 10.7 cm Weight: 154 g Input Voltage: 4.5 ～ 5.5 VDC Current Consumption (5V): 450 mA 【DS8178】 Dimensions (HxWxD): (Main Unit) 16.8 cm x 6.6 cm x 10.7 cm (Cradle) 7.1 cm x 8.4 cm x 21.1 cm Weight: (Main Unit) 235.3 g (Cradle) 202 g Cradle Input Voltage 5V: 4.7 ～ 5.5 VDC 12V: 10.8 ～ 13.2 VDC Battery: 2,500 mAh Lithium-ion Power Precision+ Battery Scan Count on Full Charge: Over 65,000 scans (1 scan per second) *For other detailed specifications, please refer to the PDF catalog.
Price range
Delivery Time
Applications/Examples of results
We will significantly improve the barcode reading speed at home center registers and logistics centers compared to conventional products. With the DS8100 series, anyone can experience an increase in reading speed, which not only enhances the work of cashiers at the stores where it is implemented and reduces stress during scanning, but also allows for shorter wait times and quicker transactions for customers in line. Additionally, we offer models suited for various applications, such as hands-free and wireless models, so you can choose according to the on-site usage environment. Even those who are not accustomed to scanning tasks can easily achieve the same reading performance as veterans, leading to reduced labor costs and increased customer satisfaction.
Detailed information
-
Outstanding reading performance utilizing all of Zebra's technology.
-
Integration of the conventional HD model and the SR model Covers high resolution to long distance with one unit.
-
The dense barcode can also be targeted and read. The picking list mode is convenient.
-
It is equipped with object detection functionality, and hands-free reading using a stand is also convenient.
Line up（6）
| Model number | overview |
|---|---|
| DS8108-USBR | Standard type imager USB set (main unit, USB cable) with instruction manual CD |
| DS8108-RSR | Standard type imager RS232 set (main unit, RS232 cable, AC adapter) with instruction manual CD |
| DS8178-USBR | Wireless imager cradle set USB (main unit, cradle, battery, USB cable) with instruction manual CD |
| DS8178-RSR | Wireless imager cradle set RS232 (main unit, cradle, battery, RS232 cable) with instruction manual CD |
| DS8178SR-USBR-PRE | Wireless imager presentation cradle set USB (main unit, presentation cradle, battery, USB cable) with instruction manual CD |
| DS8178SR-RSR-PRE | Wireless imager presentation cradle set RS232 (main unit, presentation cradle, battery, RS232 cable) with instruction manual CD |
