This is a CPU board that supports high-speed real-time processing required for industrial equipment such as AC servos and industrial Ethernet like EtherCAT.

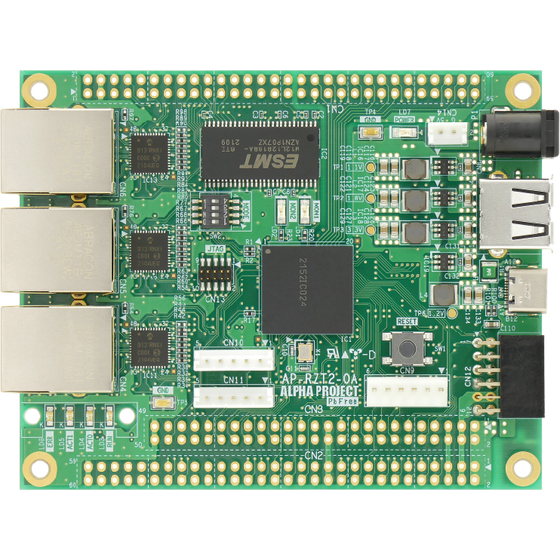

The AP-RZT2-0A is a CPU board equipped with the Renesas Electronics CPU RZ/T2M. It achieves high-speed real-time performance and network processing through parallel processing with the dual-core Arm Cortex-R52. It features three Gigabit Ethernet ports and supports various industrial networks in addition to EtherCAT. Additionally, it includes USB, CAN FD, and serial I/F, as well as Pmod, allowing for the expansion of various functions by utilizing commercially available Pmod modules.
Inquire About This Product
basic information
- Equipped with Arm Cortex-R52 Dual-core "RZ/T2M" - Large capacity memory - QSPI FlashROM 4MByte - Built-in RAM 2MByte - Tight-coupled memory 512KByte - SDRAM 16MByte - Abundant interfaces - Pmod, Ethernet, USB, CAN FD, Serial I/F - Supports multi-protocol industrial Ethernet - Adopts FreeRTOS as the standard OS - Provides circuit diagrams and sample programs
Price information
¥29,800 (including tax ¥32,780)
Price range
P2
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Prototype development, evaluation, and integration into small lot products, etc.
Detailed information
-
RZ/T2M equipped CPU board AP-RZT2-0A
