Standard accessories include orange peel overflow prevention valve, cutting edge at the tip, and polypropylene insertion tube!

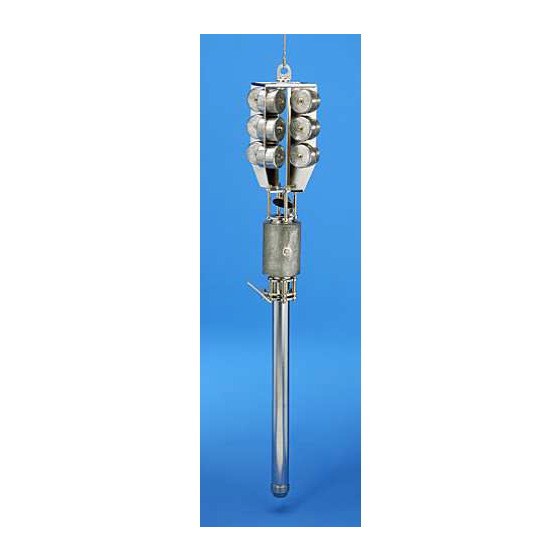

The "OSK 56LD403" is a free-hole corer made of stainless steel, which can be operated either manually or via a line. After sampling, the collection tube can be quickly removed. The four wing plates at the top can be equipped with weights (optional). The standard accessories include the corer body, stainless steel collection tube, two weights, an orange peel overflow prevention valve, a cutting edge at the tip, and a polypropylene insertion tube. 【Features】 ■ Manual operation for shallow waters, line operation for deep waters (dual use) ■ Quick removal of the collection tube after sampling ■ Weights (optional) can be attached to the four wing plates at the top *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Main body/Collection tube: Material AISI Stainless Steel 316 ■Collection tube ・Length: 1000mm ・Inner diameter/Outer diameter: Ø60/Ø53mm ■Weights: Lead 7.0kg x 2 pieces ■Total length (without collection tube): 760mm ■Weight: 38kg *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Purpose】 ■Collection of sandy deposits *For more details, please refer to the PDF document or feel free to contact us.
