Optional friction balls available! Equipped with a digital automatic counter, allowing for drum rotation speed settings.

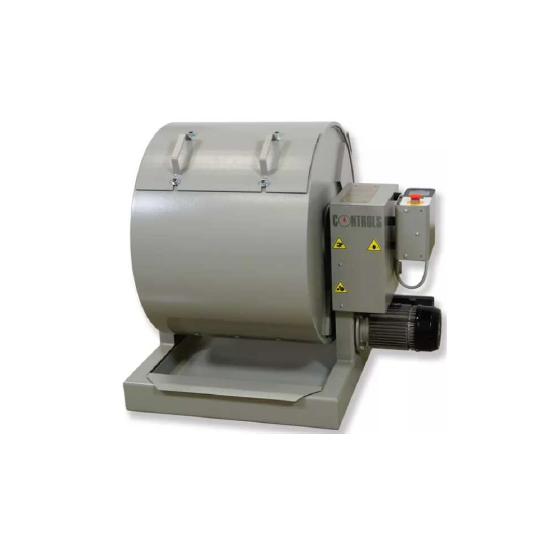

The "OSK 40DP-48D0502/504" is a testing device used to measure the wear resistance of coarse aggregates. It features a cylindrical container with an inner diameter of 711mm and an inner length of 508mm, mounted on a steel base, which rotates at 31 to 33 revolutions per minute. The rotation speed can be adjusted using an inverter motor. Additionally, it is equipped with a digital automatic counter, allowing for the setting of drum rotation speed. 【Features】 ■ Cylindrical container with an inner diameter of 711mm and an inner length of 508mm, rotating at 31 to 33 revolutions per minute, mounted on a steel base. ■ Inverter motor drive with adjustable rotation speed. ■ Equipped with a digital automatic counter. ■ Drum rotation speed can be set. *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Power Consumption (W): 750W ■External Dimensions (mm) W×D×H: 1005×820×950 ■Weight (approx., kg): 350 ■Power Supply ・48-D0502: AC220–240V 50/60Hz ・48-D0504: AC100–120V 60Hz *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Our company handles research and development equipment, manufacturing test facilities, medical devices, survey equipment, and more. We are responsible for introducing world-leading automation and process rationalization technologies to industrial sites in Japan, contributing to the shortening of operations. Please feel free to contact us if you have any requests.
