Equipped with a stable mechanism inside the body! Effective for continuously producing identical samples.

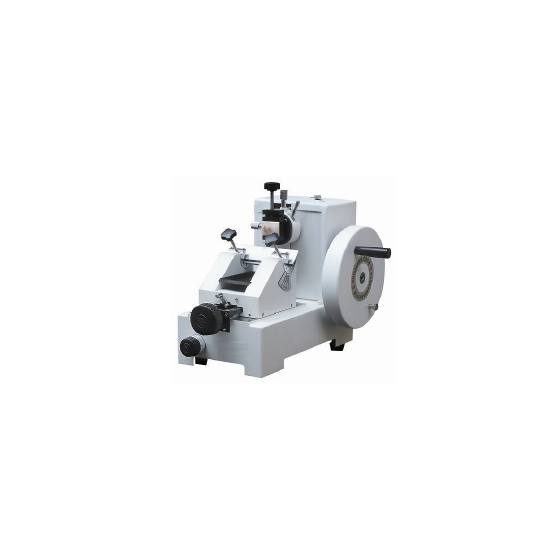

The "OSK 97LF504" is a rotary microtome that can use both knives and replacement blades. It is widely used in laboratories, has a minimum scale of 1μm, and a trimming thickness range of 0 to 500μm, with a front and back movement range of the blade holder base of 50mm. Additionally, there is a freezing unit "OSK-97LF-FU" that allows for temperature-specific freezing using high-power semiconductors, and it can display the set temperature and current value on an LCD panel. 【Specifications (partial)】 ■ Section thickness range: 1 to 35μm ■ Section accuracy: ±5% ■ Maximum sample size: 40×30×20mm ■ Main unit dimensions (W×D×H) mm: 420×330×330 ■ Main unit weight (kg): 19 *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Other Specifications (Partial)】 ■ Blade holder lateral movement range: None ■ Sample horizontal stroke: 28mm ■ Sample vertical stroke: 60mm ■ Sample orientation: Horizontal 8°, Vertical 8°, 360° rotation * For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
