GNSS Ultra-Low Loss SAW Cost Reduction & Delivery Response

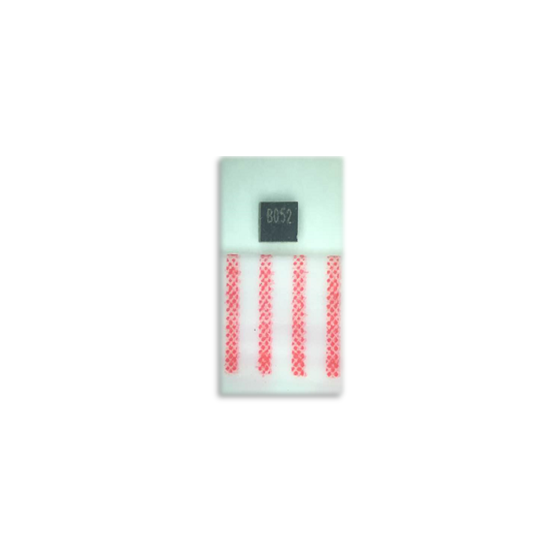

SHOULDER HDF1588LCL-B5 -SWTX
Ultra-low loss GNSS SAW FILTER, a device optimized for high-precision positioning compliant with AECQ200. Cost reduction and short delivery times are possible!
Compliant with AECQ200, guaranteed to operate at -40℃ to 105℃. Center frequency: 1582.4 MHz Insertion loss TYP MAX 1559.05~1563.15 MHz 1.0 dB 1.5 dB 1572.42~1578.42 MHz 0.8 dB 1.3 dB 1597.55~1605.89 MHz 1.0 dB 1.5 dB It has excellent characteristics in terms of passband ripple and VSWR, enabling high-precision positioning. TYP MAX Group delay characteristics 10 25 ns Package size: 1.1 mm × 0.9 mm Proven track record in GPS/GNSS antennas and modules.
Inquire About This Product
basic information
SHOULDER Corporation is the number one SAW manufacturer in China, consistently producing from the front-end to the back-end of wafer manufacturing at its own factory. The new factory is also operational, capable of producing up to 600 million units per month, with almost no delivery issues. In addition to standalone SAWs for frequency bands such as L1, L2, B3, G2, and E5a, we offer a wide range of composite SAWs like B3+L1, L1+B1, and L1+B1+G1. Furthermore, we have a broad product lineup that includes LTE bands for smartphones and bands for base stations, among others. We are also researching miniaturization for sizes such as 0907 through our own development efforts.
Price information
The price varies depending on the quantity.
Price range
P1
Applications/Examples of results
GNSS antennas, GPS antennas, GNSS modules, GPS modules, etc.
Detailed information
-
The new factory completed in February 2021 has made it possible to produce 500 million units per month, which is 2.5 times the previous production capacity.
-
We guarantee high quality and stability through consistent in-house production from wafer to packaging to final testing.
-
Stable transmission characteristics at -40℃ to 105℃
-
Achieve high-precision positioning required for GNSS products with low loss and low ripple!
