Achieving efficient balancing of motor rotors, spindle rotor shafts, etc.

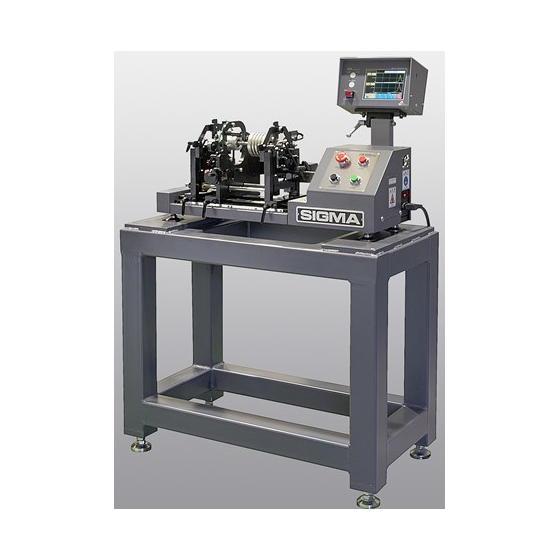

The SSB-6001A is a highly versatile and high-precision horizontal balancing machine that achieves efficient balancing of elastic rotors, including those with journals and rotor shafts. By performing low-speed balancing with this machine, the vibration peaks during high-speed field balancing conducted after assembly are suppressed, allowing for safe and effective balancing. 【Features】 ■ Selection of bearing and drive components available ■ Easy operation with graphical display ■ Compact and space-saving *For more details, please refer to the PDF materials or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Partial)】 ■Maximum rotor mass: 1kg ■Maximum body diameter: φ100mm ■Maximum belt hanging body diameter: φ100mm ■Shaft diameter (journal diameter): φ5 to φ15mm ■Maximum bearing spacing: 250mm ■Drive method: Over-slang / upward tangential belt drive ■Number of measurement surfaces: 1 to 2 surfaces ■Minimum achievable unbalance ratio: 0.1μm *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■ Spindle rotor shafts, motor rotors, turbines, fans, rolls, etc. *For more details, please refer to the PDF document or feel free to contact us.*
catalog（1）
Download All Catalogs
Company information
Sigma's balance measurement method features the adoption of multivariate analysis techniques for detecting imbalances, allowing for high-precision measurements across a range from low to ultra-high rotational speeds. The field balancer that incorporates this measurement method has been in use since 1985, with cumulative production exceeding 8,000 units. Furthermore, after that, we began selling more precise balancing machines and condition monitoring devices that continuously monitor rotating machinery and detect signs of abnormalities, which also utilize the aforementioned measurement method. Over 30 years since the start of balancer production, Sigma's balancers are actively used across various industries.
