Achieving an update speed of 4.5 million waveforms per second, equipped with 500 million points of long memory and a digital trigger system across all 8 channels.

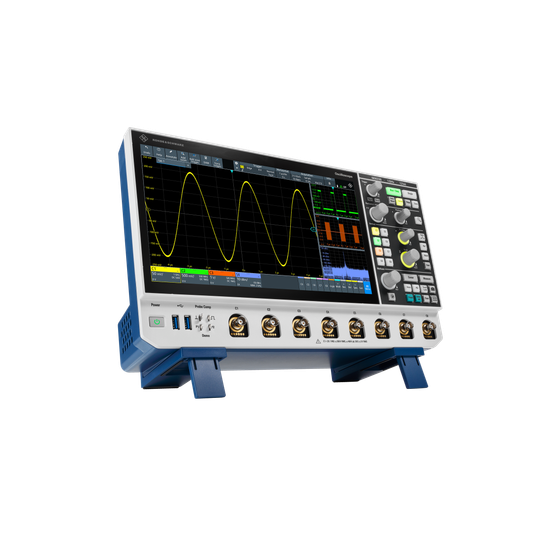

The "R&S MXO 5 Series" is a high-speed, accurate signal analysis oscilloscope with a maximum of 8 channels, achieving an update rate of 4.5 million waveforms per second. Each channel is equipped with a digital trigger system with a minimum vertical axis of 0.0001 div. The system architecture, which realizes 18-bit vertical axis resolution, ensures reliable triggering even for minute waveforms. 【Features】 ■ Performs 45,000 FFTs per second, capable of simultaneous analysis of up to 4 spectra ■ Standard memory of 500M points is parallelly equipped for each channel ■ Equipped with a 15.6-inch full HD capacitive touchscreen ■ Available in 8-channel and 4-channel models ■ Bandwidth: 8 channels: 100MHz to 2GHz, 4 channels: 350MHz to 2GHz A live demo showcasing the clear performance differences from conventional models is currently available on our website. *For more details, please check our website. Feel free to contact us with any inquiries.
Inquire About This Product
basic information
【Other Features】 ■ Achieves low noise with a vertical sensitivity of at least 500μV/div ■ Captures up to 99% of waveforms with a trigger rearming time of less than 21ns ■ Up to 1 million waveform segments available *For more details, please refer to the documentation. Feel free to contact us with any inquiries.
Price range
Delivery Time
Applications/Examples of results
*For more details, please refer to the materials. Feel free to contact us as well.*
